Vibration sensor monitors the driver.
How can small changes be predicted through precise monitoring?
Condition monitoring? Just like a butterfly flapping its wings in the Amazon rainforesthttps://heiautomation.com/product/
might trigger a distant storm, a slight abnormal vibration of a component in industrial equipment
if detected by a highly sensitive sensor and intervened promptly, can prevent the entire production line from coming to a standstill. “Preventing small problems from growing into big ones” – this modern technology interpretation

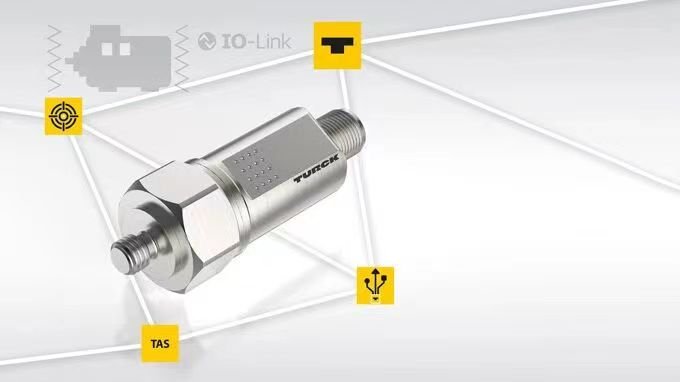

— The Turck CMVT-M8Thttps://heiautomation.com/product/ single-axis condition monitoring sensor can achieve efficient vibration monitoring, just like
a digital industrial stethoscope, safeguarding and protecting the equipmenthttps://www.facebook.com/profile.php?id=100087291657130.
Whether it is motor, driver or conveyor technology, the easily-modifiable CMVT-M8T vibration sensor from Turck can detect distinct vibration patterns, thereby preventing failures.
Turck’s CMVT-M8T featureshttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j a compact stainless steel housing and uses vibration measurement to monitor the condition of motors and drivers. This sensor is single-axis and can be easily installed in the working hole through the M8 screw thread (including an installation adapter up to M30 and three optional output signals), ensuring precise vibration monitoring with minimal installation effort.
Flexible integration can save costs.
The CMVT-M8Thttps://heiautomation.com/ can detect vibration along one axis, thus suitable for typical applications on drives, pumps or fans where the main vibration direction is orthogonal to the rotating axis. With 10-Link, PNP° switches and 4…20 mA analog outputs, the condition monitoring sensor can be widely used, effectively reducing inventory costs. The measurement accuracy at 159.2Hz is +0.5%. In addition to the RMS value, this sensor also provides peak acceleration values.
Monitoring becomes simple
It is also possible to use the vibration monitoring application in the Turck https://heiautomation.com/contact-us/Automation Suite (TAS)
or through the IO-Link master station with a Web server. Without connecting to the controller,
the equipment can be debugged. Combined with warning lights, an autonomous state monitoring system can be easily set up without a controller, which is particularly useful in existing systems. This sensor complies with ISO standard 10816-3 regarding the input of critical vibration values.
State Monitoring Sensor Series
The new 1-axis vibration sensor is the fourth type of state monitoring sensor developed by Turckhttps://studio.youtube.com/channel/UC5jh-_J8N51BACPDqMnnT6Q/videos/short?filter=%5B%5D&sort=%7B%22columnType%22%3A%22date%22%2C%22sortOrder%22%3A%22DESCENDING%22%7D, specifically designed for easy-to-use and adaptable state monitoring applications. It expands the existing product range, including the CMVT-QR203 axis vibration/temperature sensor, the CMMT magnetic field/temperature sensor, and the CMTH for humidity and temperature measurement.
Industry
Food industry and automotive industry Logistics
Mechanical Manufacturing
Key Function
M8 Threaded Insert
1 Axis Vibration Measurement
I0-Link, PNP, and 4 …20 mA Direct Vibration Monitoring in TAShttps://heiautomation.com/
What are the technical advantages of this product?
M8 thread, easy installation
The frequency range is adjustable, with high scalability
It is highly suitable for new equipment and the renovation of existing machines
Due to internal data preprocessinghttps://studio.youtube.com/channel/UC5jh-_J8N51BACPDqMnnT6Q/videos/upload?filter=%5B%5D&sort=%7B%22columnType%22%3A%22date%22%2C%22sortOrder%22%3A%22DESCENDING%22%7D, machine monitoring can be carried out without any control integration
