BALLUFF

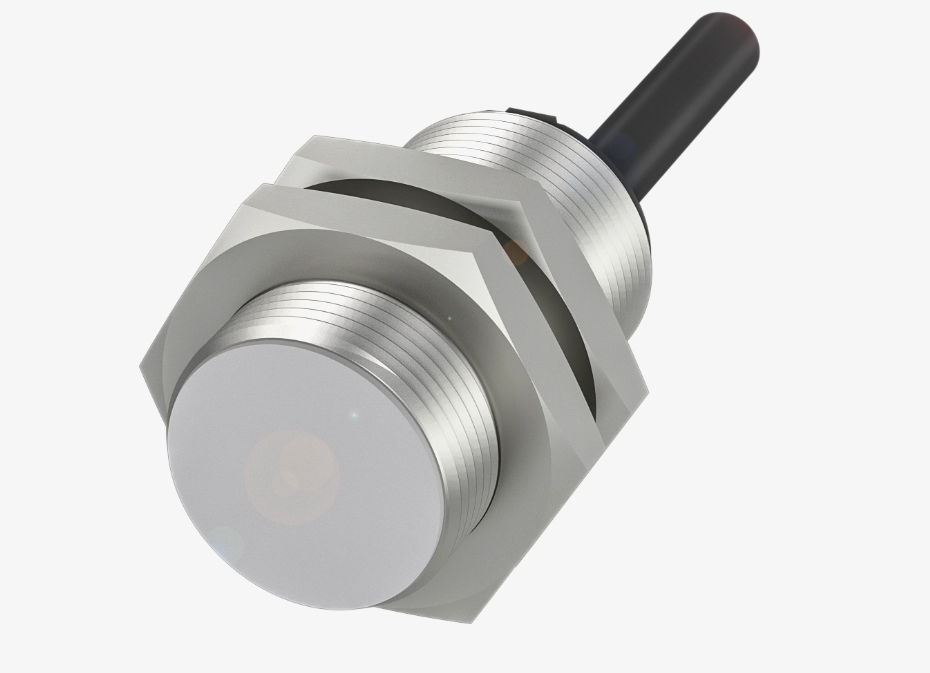

BALLUFF Cylindrical version with metric thread BAW0022 BAW M18ME UAC50B-BP03
$1.00
+ Free ShippingDimension
Ø 18 x 36 mm
Style Housing
M18x1
Installation
for flush mounting
Range
1…5 mm
Analog output
Analog, voltage 0…10 V
Output characteristic
falling on approach
Limit frequency –3 dB
500 Hz
Repeat accuracy per BWN
±8 µm
Non-linearity max.
±120 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBT
Connection
Cable, 3.00 m, PUR
Operating voltage Ub
15…30 VDC
Ambient temperature
-10…70 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
UKCA
cULus
WEEE
Principle of operation
Inductive Distance Sensor
