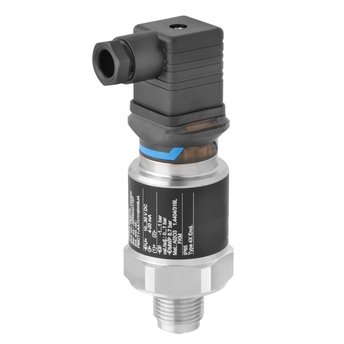

E+H Absolute and gauge pressure Cerabar PMP71-BBC1P11RDAAU

Absolute and gauge pressurehttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts

Digital transmitter with piezoresistive sensor and welded metallic membrane
Modular transmitter
Long term stability
Enhanced safety via self diagnostic functionsSecondary process barrier

4…20 mA HART
10,5…45V DC (Non Ex):
Ex ia: 10,5…30V DC
PROFIBUS PA:
9…32 V DC (Non Ex)
FOUNDATION Fieldbus:
9…32 V DC (Non Ex)

Standard: 0.05%
Platinum: up to 0.025%

0.05 % of URL/ year
0.07 % of URL/ 5 years
0.1 % of URL/ 10 years

-40°C…125°C
(-40°F…257°F)

-50°C…85°C
(-58°F…185°F)

400 mbar…700 bar
(5.8 psi…10.500 psi)
relative/ absolute

5 mbar (0.075 psi)

10 mbar (0.15 psi)

100:1

1050 bar (15.750 psi)

Thread:
G1/2…G2, R1/2, MNPT1/2…MNPT2, R1/2
Flange:
DN25…DN80,
ASME 1″…4″,
JIS 10K…20K

316L, AlloyC,
Rhodium> Gold

None, measuring cell welded

Silicone oil,
Inert oil

Die-cast aluminum,
AISI 316L

4…20 mA HART
1- 5V DC Low Power
PROFIBUS PA
FOUNDATION Fieldbus

ATEX, FM, CSA, CSA C/US, IEC Ex, JPN Ex, INMETRO, NEPSI, EAC, UK Ex

SIL

EN10204-3.1
NACE MR0175

GL/ABS

NSF

Diagnostic functions

PMP71B
