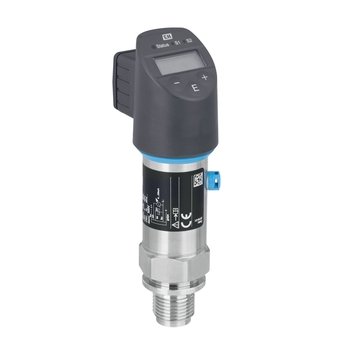

E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ
E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ - Image 2
E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ - Image 3
E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ - Image 4
E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ - Image 5
E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ - Image 6

E+H Absolute and gauge pressure Ceraphant PTP33B-AA7M1MGU3CJ

$515.00

+ Free Shipping

  • Measuring principle

    Pressure switch

  • Characteristic

    Intelligent pressure switch with metal diaphragm for hygienic applications,
    longterm stable

  • Supply voltage

    10….30 VDC

  • Reference Accuracyhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts

    0.5 %,
    Platinum: 0.3 %

  • Long term stabilityhttps://www.facebook.com/profile.php?id=100087291657130

    0.2 % of URL/year

  • Process temperature

    -40 °C…+100 °C
    (-40 °C…+212 °F)

  • Ambient temperature

    -20 °C…+70 °C
    (-4 °F…+158 °F)

  • Measuring cell

    +400 mbar….+40 bar
    (+6 psi….+600 psi)

  • Max. overpressure limit

    160 bar (2320 psi)

  • Process connection

    Thread: M24

  • Process connection hygienic

    DIN11851, Tri Clamp, SMS, Varivent

  • Communication

    1x PNP switch
    2x PNP switch
    1x PNP switch + 4…20 mA analogue

  • Design approvals

    EN 10204-3.1 final inspection report,
    Cleaned from oil and grease,
    Set min alarm

  • Hygienic approvals

    FDA concurring
    3A, EHEDG,
    EG1935/2004

  • Specialities

    Digital display,
    Fully welded process connections

SKU: 520 Category:
