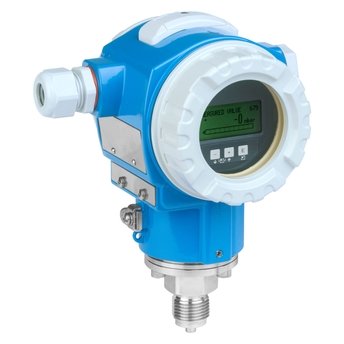

E+H Cerabar PMC51B – pressure transmitter PMC51-AA21RA1SGCGCJA+AK

Absolute and gauge pressure

Pressure transmitter with ceramic process membran for accurate measurement in liquid or gases.
Intuitive and clear wizard for commissioning

Ex d, Ex e, non-Ex:
10.5…35V DC
Ex i: 10.5…30V DC

Standard:
up to 0.075 %
Platinum:
up to 0.055 %

0.10% of URL/ year
0.25% of URL/ 5 years
0.40% of URL/ 10 years

-40°C…+100°C
(-40°F…+212°F)

-40°C…+85°C
(-40°F…+185°F)

100 mbar…40 bar
(1.5 psi…600 psi)

5 mbar (0.075 psi)

0 mbar abs.

100:1

60 bar (900 psi)

Thread:
G1/2…G2, R1/2, MNPT1/2…MNPT2,
FNPT1/2
Flange:
DN25…DN80,
NPS 1″…4″

Ceramic

FKM, EPDM, HNBR, FFKM

none, dry measuring cell

Aluminium

4…20 mA,
4…20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless
technology and app (optional)

ATEX, CSA, IECEx, JPN Ex, INMETRO, NEPSI, UK Ex

SIL

EN10204-3.1
NACE MR0175,
NACE MR0103

NSF, KTW

Bluetooth® Operation and maintenance SmartBlue App,
RFID TAG for easy identification,
