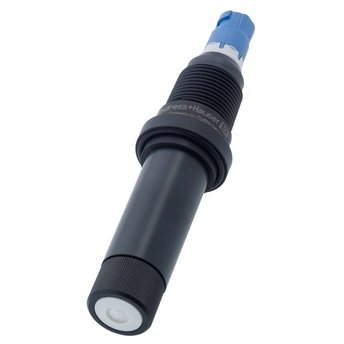

E+H Chloromax CCS142D-GAS80

Free chlorine

Water treatment, drinking water, service water, process water, distribution network

Amperometric measurement of free chlorine

CCS142D-A:
0.05 to 20 mg/l Cl2 (25 °C (77 °F), pH 7.2)
CCS142D-G:
0.01 to 5 mg/l Cl2 (25 °C (77 °F), pH 7.2)

Membrane-covered amperometric sensor

Sensor for use in flow cell (CCA250)
or for immersion use (thread NPT 3/4 on top)
Memosens-technology

Sensor shaft: PVC
Membrane: PTFE
Membrane cap: PBT, PVDF
Cathode: gold
Anode: silver / silver chloride

Diameter sensor body: 25 mm (0.98 inch)
Diamter sealing seat for flow cell: 31 mm (1.22 inch)
Length: 148 mm (5.83 inch)

0 to 45 °C (32 to 113 °F), non-freezing

Medium in the CCA250 assembly: max. 1 bar (14.5 psi)

Integrated (Memosens)

Memosens
