Endress+Hauser

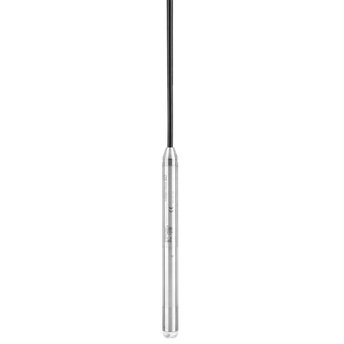

E+H Hydrostatic Level measurement Waterpilot FMX21-BD111GGB10A
$500.00
+ Free Shipping-
Measuring principle
Hydrostatic pressure
-
Characteristic
Compact probe with ceramic cell for hydrostatic level measurement,
Diameter = 22 mm: General applications, fresh water
Diameter = 42 mm: Waste water applications
Diameter = 29 mm: Salt water applications -
Supply voltage
10.5 …35V DC
-
Reference Accuracy
0.2%
0.1% (optional) -
Long term stability
0.1% of URL/year
-
Process temperature
-10°C…70°C
(14°F…158°F)
Diameter 29 mm (1.14″): 0°C…50°C
(32°F…122°F) -
Ambient temperature
-10°C…70°C
(14°F…158°F)
Diameter 29 mm (1.14″):
0°C…50°C
(32°F…122°F) -
Measuring cell
100mbar…20bar
(1.5psi…300psi) -
Process connection
Suspension clamp
Cable mounting screws -
Communication
4…20 mA
4…20 mA HART -
Certificates / Approvals
ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, UK Ex
-
Marine approvals
GL/ ABS/ BV/ DNV/ LR
-
Drinking water approvals
NSF/ KTW/ ACS
