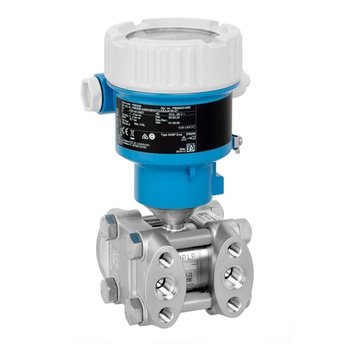

E+H Deltabar PMD55B – differential pressure transmitter PMD55B-AABADBA37DCGSAJA1DVDZ1

$1.00

+ Free Shipping

Configure to download the CAD drawings of this product

  • Measuring principle

    Differential pressure

  • Characteristic

    Transmitter with metal membrane for differential pressure monitoring in liquids or gases.
    Intuitive and clear wizard for commissioning

  • Supply voltage

    Ex d, Ex e, non-Ex::
    10.5…35V DC
    Ex i: 10.5…30V DC

  • Reference Accuracy

    Standard:
    up to 0.075 %
    Platinum:
    up to 0.055 %

  • Long term stability

    0.05 % of URL/ year
    0.13 % of URL/ 5 years
    0.23 % of URL/ 10 years

  • Process temperature

    -40°C…+110°C (-40°F…+230°F)

  • Ambient temperature

    -40°C…+85°C (-40°F…+185°F)

  • Measuring cell

    10 mbar…. 40 bar (0.15 psi… 600 psi)

  • Smallest calibratable span

    0.25 mbar (0.00375 psi)

  • Vacuum resistance

    25 mbar (0.0375 psi)

  • Max. Turn down

    100:1

  • Max. overpressure limit

    375 bar (5625 psi)

  • Process connection

    NPT 1/4-18, RC1/4″

  • Material process membrane

    316L, AlloyC,
    Gold

  • Material gasket

    EPDM, HNBR, FVMQ,

  • Fill fluid

    Silicone oil,
    Inert oil

  • Material housing

    Aluminium

  • Communication

    4…20 mA HART
    PROFINET with Ethernet-APL
    Bluetooth® wireless
    technology and app (optional)

  • Certificates / Approvals

    ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex

  • Safety approvals

    SIL

  • Design approvals

    EN 10204-3.1,
    NACE MR0175,
    NACE MR0103,
    AD2000

  • Drinking water approvals

    NSF, KTW

  • Specialities

    Bluetooth® Operation and maintenance with SmartBlue App,
    RFID TAG for easy identification,
    Plug and play functionalities

SKU: 1-634 Category:
