E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 2
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 3
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 4
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 5
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 6
E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A - Image 7

E+H Ultrasonic measurement Time-of-Flight Prosonic FMU90-R11CA212AA3A

$1,300.00

+ Free Shipping

Configure to download the CAD drawings of this product

  • Measuring principle

    Ultrasonic

  • Characteristic / Application

    Separated version with Field housing or top hat rail housing for control cabinet instrumentation, up to 6 relays for pump / rake / limit control, 1 or 2 channel version

  • Specialities

    Protection Class IP 66 / NEMA 4x
    automatic sensor recognition of FDU9x sensors
    option: flow measurement for open channel and weirs or additional pump control functions

  • Supply / Communication

    90 … 253 VAC
    10.5 … 32 VDC
    up to 2x 4…20mA HART
    Profibus DP

  • Accuracy

    +/- 2mm + 0.17% of measured distance

  • Ambient temperature

    -40 °C … 60 °C
    (-40 °F … 140 °F)

  • Communication

    up to 2x 4 … 20 mA HART
    Profibus DP

  • Certificates / Approvals

    ATEX, CSA

  • Options

    Illuminated display, 6 line graphic display with country specific menu guidance, on-site diagnosis with envelope curve on display

  • Components

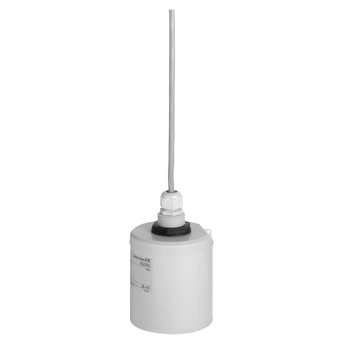

    Sensors FDU9x

SKU: 1300 Category:
