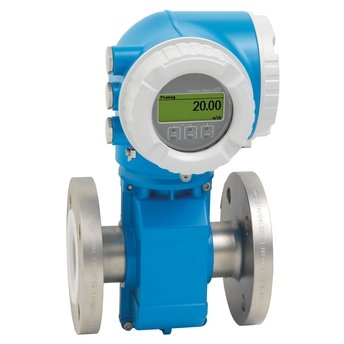

Endress+Hauser Promag 50P25-EA0A1AA0AFAW

Electromagnetic

std_productprofile_product_usp_34684_1508942319.
Dedicated to chemical and process applications with corrosive liquids and high medium temperatures.

Diverse applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts.
Nominal diameter: max. DN 600 (24″). All common Ex approvals. Liner made of PTFE or PFA.

std_productprofile_product_benefits_34681_1508942231. std_productprofile_product_benefits_34683_1508942232. std_productprofile_product_benefits_34682_1508942239.
std_successorproducts_product_differentiating_tech_features_35305_1509527304. std_successorproducts_product_differentiating_tech_features_35308_1509527353. std_successorproducts_product_differentiating_tech_features_35309_1509527353.

DN 15…600
1/2″…24″

±0.5%
±0.2% (optional)

0…9’600 m3/h

PN10…40
Cl 150…300
JIS 10…20K
AS 2129 Table E
AS 4087 PN16

-40…+180°C
(-40…+356°F)

-20…+60°C
-40…+60°C (optional)

IP 67 (NEMA 4x)
IP 68 (Nema 6P)

Two line display with backlit
Push button

4…20 mA
Pulse/Frequency
Status

Status

HART
PROFIBUS PA

ATEX, IECEx, NEPSI, FM, CSA

CE, C-tick, EAC marking

PED, CRN
