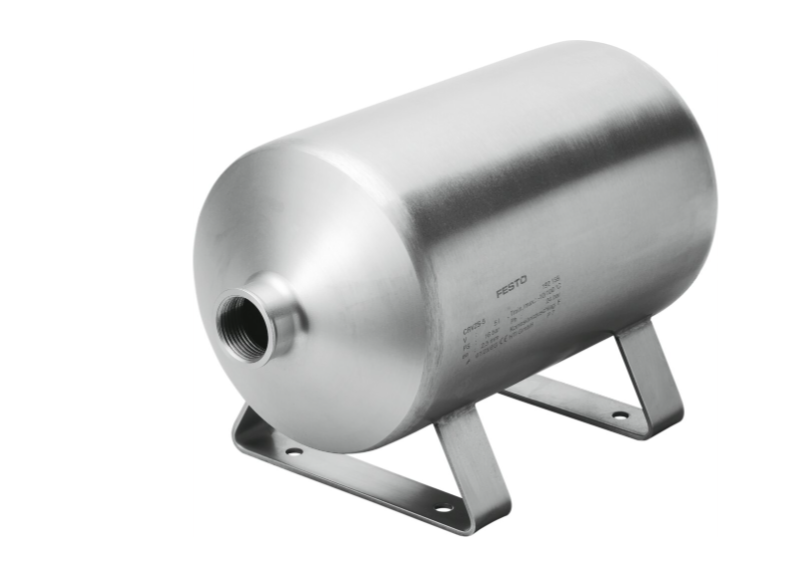

FESTO Air reservoir CRVZS-5 192159

Technical Data

• Volume5 lhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts
• Mounting positionCondensate drain underneath
• Conforms to standardAD 2000
• Symbol00991474
• Operating pressure-0.095 MPa … 1.6 MPa
• Operating pressure-0.95 bar … 16 bar
• Operating pressure-13.78 psi … 232 psi
• ApprovalGerman Technical Control Board (TÜV)https://www.facebook.com/profile.php?id=100087291657130
• CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
• UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
• Operating mediumNitrogen
• Corrosion resistance class CRC3 – high corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Suitable for use with foodSee supplementary material information
• Media temperature-10 °C … 100 °C
• Ambient temperature-10 °C … 100 °C
• Max. tightening torque for connecting thread130 Nm
• Max. tightening torque for condensate drain27 Nm
• Product weight3581 g
• Type of mountingWith through-hole
• Condensate drain connectionG3/8
• Pneumatic connectionG1
• Note on materialsRoHS-compliant
• Material air reservoirHigh-alloy stainless steel
