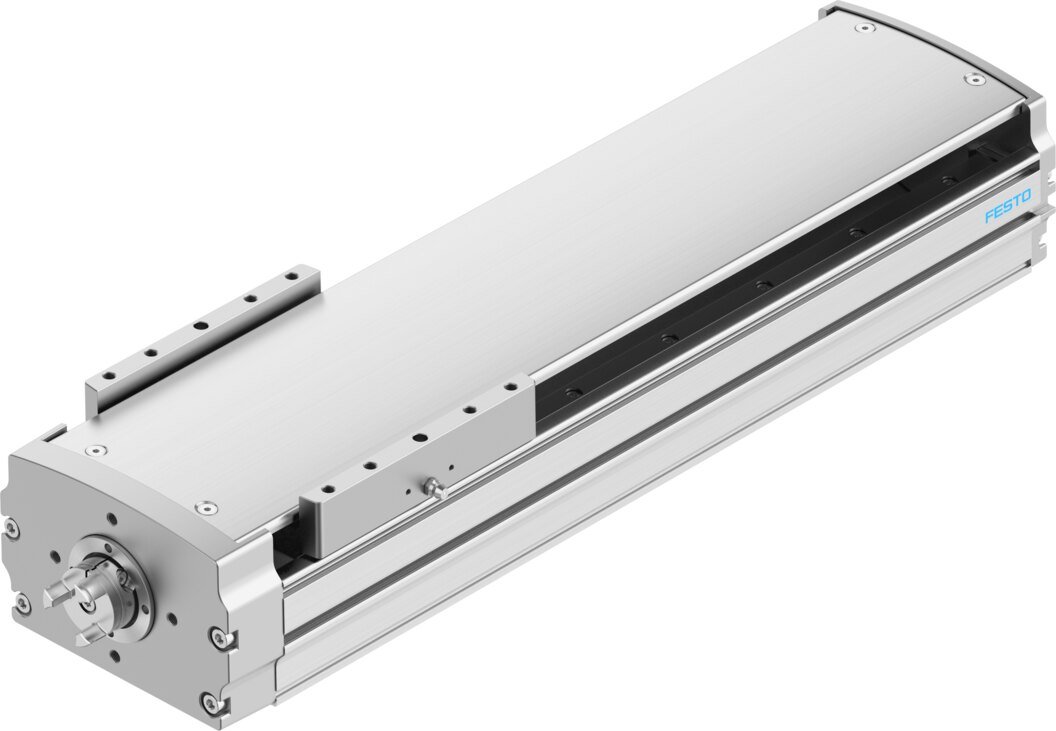

FESTO Ball screw axis ELGT-BS-120-300-10P 8124451
$990.00
+ Free Shipping- Working stroke300 mm
- Size120
- Stroke reserve0 mm
- Reversing backlash theoretical≤150 µm
- Spindle diameter16 mm
- Spindle pitch10 mm/U
- Mounting positionoptional
- GuideRecirculating ball bearing guide
- DesignWith ball screw
- Type of motorStepper motor Servo motor
- Spindle typeBall screw
- Symbol00991211
- VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils.
- Max. acceleration15 m/s²
- Max. rotational speed3000 rpm
- Max. speed0.5 m/s
- Repetition accuracy±0.02 mm
- Duty cycle100%
- LABS (PWIS) conformityVDMA24364 zone III
- Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14Class 8 according to ISO 14644-1
- Degree of protectionIP20
- Ambient temperature0 °C … 50 °C
- Continuous feed force1265 N
- 2nd moment of area Iy966000 mm⁴
- 2nd moment of area Iz6011000 mm⁴
- Idle torque at vmax0.3 Nm
- Idle torque at vmin0.08 Nm
- Max. force Fy6800 N
- Max. force Fz8090 N
- Fy at theoretical life value of 100 km (only guide consideration)25051 N
- Fz at theoretical life value of 100 km (only guide consideration)29804 N
- Max. moment Mx300 Nm
- Max. moment My310 Nm
- Max. moment Mz310 Nm
- Mx at theoretical life value of 100 km (only guide consideration)1105 Nm
- My at theoretical life value of 100 km (only guide consideration)1142 Nm
- Mz at theoretical life value of 100 km (only guide consideration)1142 Nm
- Max. radial force at drive shaft290 N
- Max. feed force Fx1265 N
- Torsional mass moment of inertia It506000 mm⁴
- Mass moment of inertia JH per metre of stroke0.3453 kgcm²
- Mass moment of inertia JL per kg of working load0.0253 kgcm²
- Mass moment of inertia JO0.1306 kgcm²
- Feed constant10 mm/U
- Moving mass2019 g
- Product weight8974 g
- Basic weight for 0 mm stroke5259 g
- Additional weight per 10 mm stroke124 g
- Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
- Static deflection (load in standstill)0.1% of the axis length
- Interface code, actuatorT46
- Material end capPainted die cast aluminium
- Material profileAnodised wrought aluminium alloy
- Note on materialsRoHS-compliant
- Material drive coverPainted die cast aluminium
- Material guide slideSteel
- Material guide railSteel
- Material slideAnodised wrought aluminium alloy
- Material ball screw nutSteel
- Material spindleSteel
