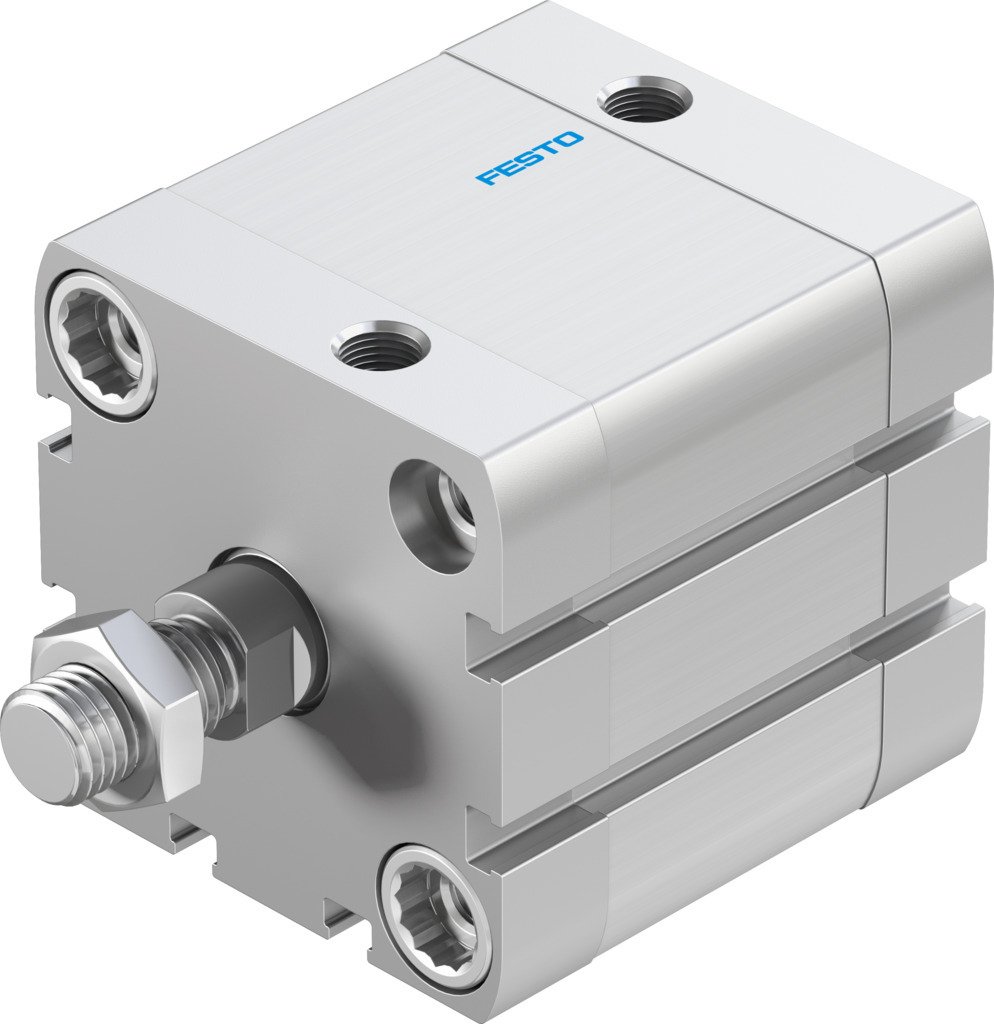

FESTO Compact cylinder ADN-50-25-A-P-A 536314

Technical Data

• Stroke25 mmhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts
• Piston diameter50 mm
• Piston rod threadM12x1.25
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• Conforms to standardISO 21287
• Piston-rod endMale thread
• Position detectionVia proximity switch
• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.06 MPa … 1 MPa
• Operating pressure0.6 bar … 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 – Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C … 80 °C
• Impact energy in end positions1 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke1057 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
• Moving mass204 g
• Product weight660 g
• Type of mountingWith through-hole Via female thread With accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material collar screwsSteel
• Material coverAnodised wrought aluminium alloy
• Material sealsTPE-U(PUR)
• Material piston rodHigh-alloy steel
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
