FESTO

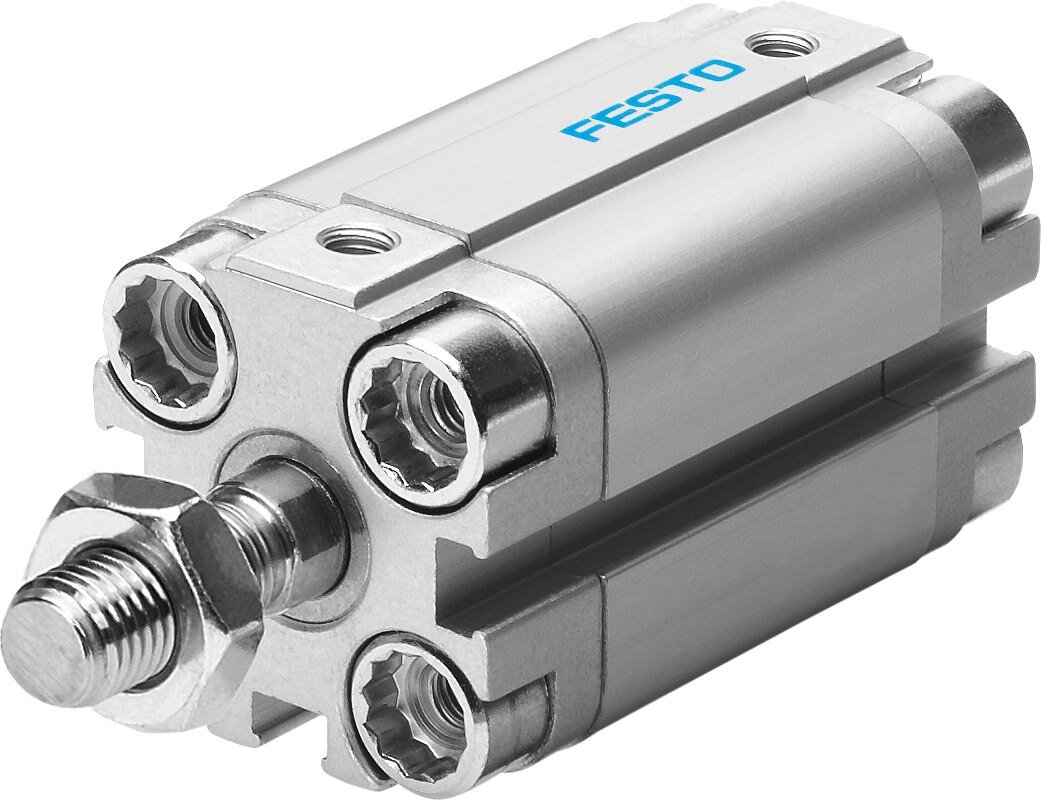

FESTO Compact cylinder ADVU-25-15-A-P-A 156610
$1.00
+ Free Shipping- Stroke15 mm
- Piston diameter25 mm
- Piston rod threadM10x1.25
- CushioningElastic cushioning rings/plates at both ends
- Mounting positionoptional
- Mode of operationDouble-acting
- Piston-rod endMale thread
- DesignPiston Piston rod
- Position detectionVia proximity switch
- Symbol00991217
- VariantsPiston rod at one end
- Operating pressure0.1 MPa … 1 MPa
- Operating pressure1 bar … 10 bar
- Operating pressure14.5 psi … 145 psi
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Ambient temperature-20 °C … 80 °C
- Impact energy in end positions0.1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
- Moving mass for 0 mm stroke26 g
- Additional moving mass per 10 mm stroke6 g
- Basic weight for 0 mm stroke180 g
- Additional weight per 10 mm stroke28 g
- Type of mountingWith through-hole With accessories
- Pneumatic connectionM5
- Material collar screwsGalvanised steel
- Material coverWrought aluminium alloy
- Material dynamic sealsNBR TPE-U(PU)
- Material piston rodHigh-alloy stainless steel
- Material cylinder barrelWrought aluminium alloy
