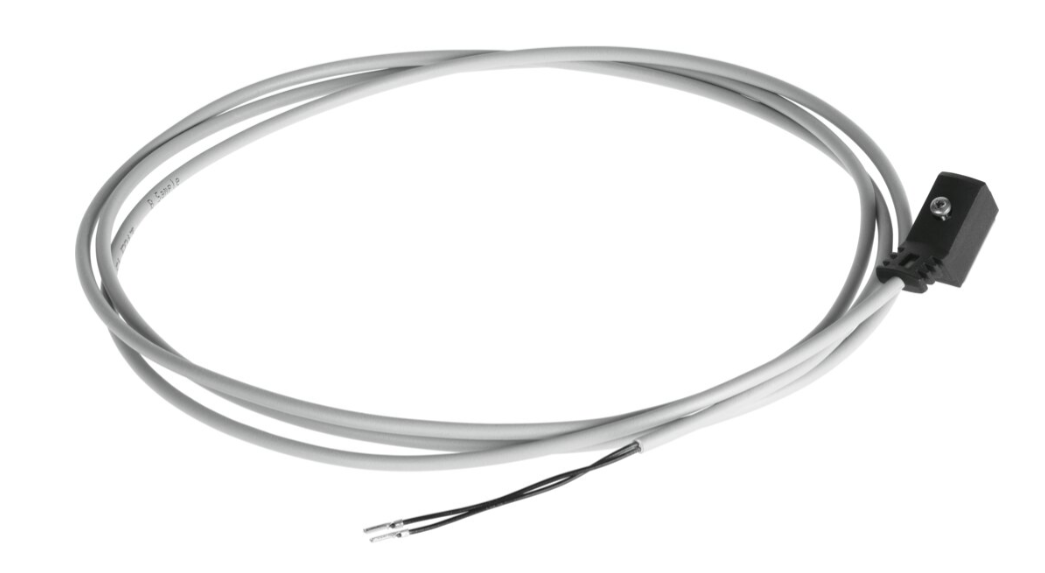

FESTO Connecting cable NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 8047679

Technical Data

• Signal status displayYellow LEDhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts
• Additional functionsHolding current reduction Protective circuit
• Cable designationWithout inscription label holder
• Frequency of connection50
• Product weight50 g
• Electrical connection 1, functionField device side
• Electrical connection 1, designAngular
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletAngledhttps://www.facebook.com/profile.php?id=100087291657130
• Electrical connection 1, connector systemPlug pattern ZC, metric screw
• Electrical connection 1, number of connections/cores2
• Electrical connection 1, used connections/cores2
• Electrical connection 1, type of mountingOn solenoid valve via M2 central screw
• Electrical connection 1, connection pattern00995625
• Electrical connection 2, functionController side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores2
• Electrical connection 2, used connections/cores2
• Operational voltage range DC20.4 V … 26.4 V
• Nominal operating voltage DC24 V
• Immunity to surge2.4 kV
• Reverse polarity protectionBipolar
• Protective conductor connectionNot available
• Cable length2.5 m
• Cable characteristicSuitable for energy chains
• Test conditions cableTest conditions on request
• Bending radius, moving cable≥29 mm
• Cable diameter2.9 mm
• Cable diameter tolerance± 0.1 mm
• Cable structure2 x 0.14 mm²
• Nominal cross section conductor0.14 mm²
• Degree of protectionIP65
• Note on degree of protectionIn assembled state
• Ambient temperature-10 °C … 50 °C
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364-B2-L
• Note on materialsRoHS-compliant
• Pollution degree3
• Note on the contamination levelIn mounted state
• Corrosion resistance class CRC3 – high corrosion stress
• Material cable sheathTPE-U(PUR)
• Cable sheath colourGrey
• Material housingTPE-U(PU)
• Housing colourBlack
• Material screwsStainless steel
• Material electrical contactCopper alloy, tin-plated
• Material insulating sheathPP
