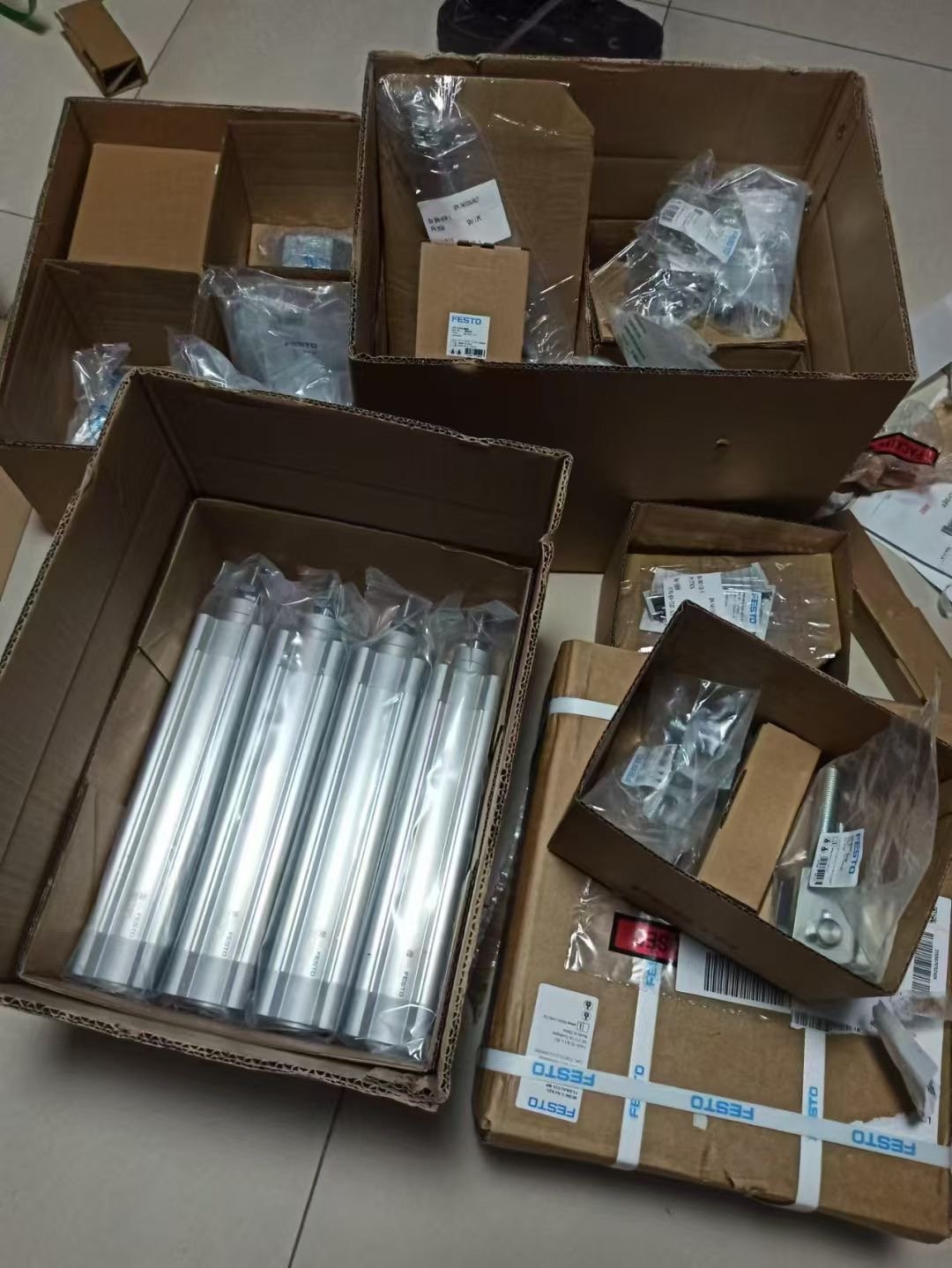

FESTO ISO cylinder DSBC-100-155-PPVA-N3 1463598

Feature ValueStroke 1 mm … 2800 mmPiston diameter 100 mmPiston rod thread M20x1.5Cushioning Pneumatic cushioning, adjustable at both endsMounting position optionalConforms to standard ISO 15552Piston-rod end Male threadDesign PistonPiston rodProfile barrelPosition detection Via proximity switchSymbol 00991235Variants Piston rod at one endOperating pressure 0.04 MPa … 1.2 MPaOperating pressure 0.4 bar … 12 barMode of operation Double-actingOperating medium Compressed air to ISO 8573-1:2010 [7:4:4]Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation willalways be required)Corrosion resistance class CRC 2 – Moderate corrosion stressLABS (PWIS) conformity VDMA24364-B1/B2-LAmbient temperature -20 °C … 80 °CImpact energy in end positions 2.5 JCushioning length 31 mmTheoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 4418 NTheoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 4712 NMoving mass for 0 mm stroke 1000 gAdditional moving mass per 10 mm stroke 39 gBasic weight for 0 mm stroke 3665 g
