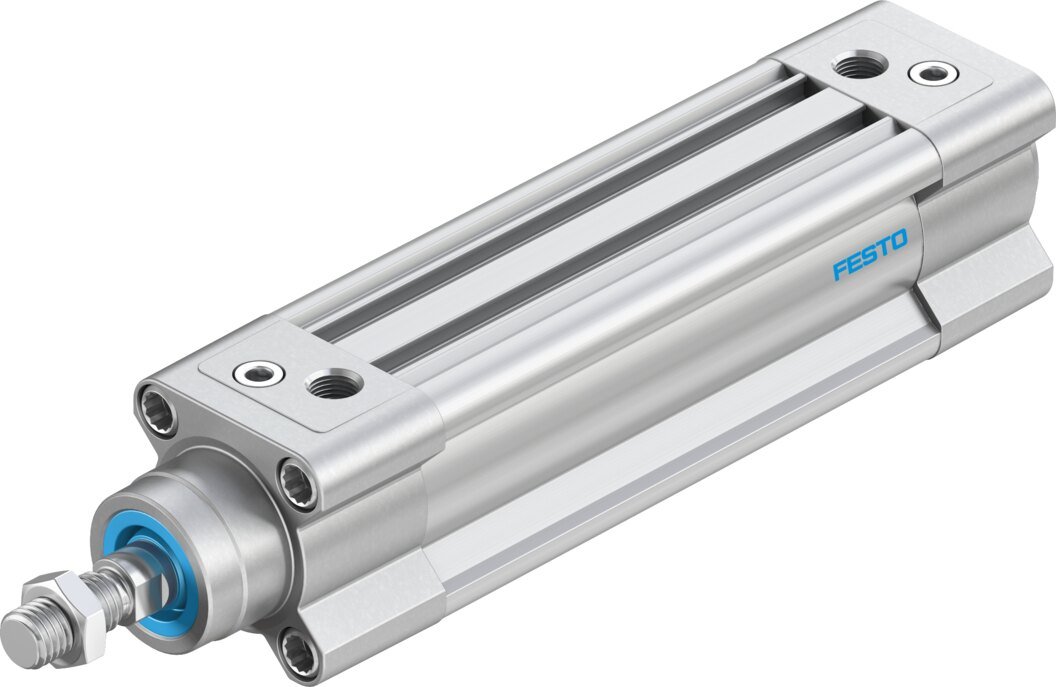

FESTO ISO cylinder DSBC-32-80-PPVA-N3 1376425

Technical Data

• Stroke80 mm
• Piston diameter32 mmhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j/shorts
• Piston rod threadM10x1.25
• CushioningPneumatic cushioning, adjustable at both ends
• Mounting positionoptional
• Conforms to standardISO 15552
• Piston-rod endMale thread
• DesignPiston Piston rod Profile barrel
• Position detectionVia proximity switch
• Symbol00991235
• VariantsPiston rod at one end
• Operating pressure0.06 MPa … 1.2 MPa
• Operating pressure0.6 bar … 12 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 – Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Ambient temperature-20 °C … 80 °C
• Impact energy in end positions0.4 J
• Cushioning length17 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N
• Moving mass182 g
• Moving mass for 0 mm stroke110 g
• Additional moving mass per 10 mm stroke9 g
• Product weight681 g
• Basic weight for 0 mm stroke465 g
• Additional weight per 10 mm stroke27 g
• Type of mountingVia female thread With accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS-compliant
• Material coverCoated die-cast aluminium
• Material piston sealTPE-U(PU)
• Material pistonWrought aluminium alloy
• Material piston rodHigh-alloy steel
• Material piston rod wiperTPE-U(PU)
• Buffer seal materialTPE-U(PU)
• Material of cushioning bossPOM
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
• Material nutGalvanised steel
• Material bearingPOM
• Material collar screwsGalvanised steel
