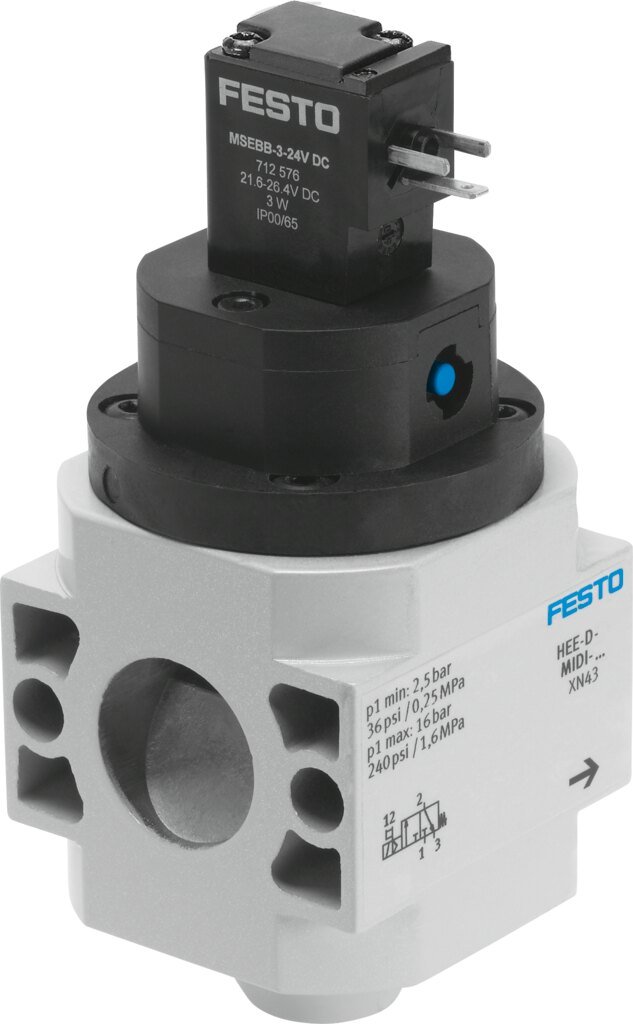

FESTO On/off valve HEE-D-MIDI-24 172959
$1.00
+ Free Shipping- DesignPiston gate valve
- Type of actuationElectrical
- Sealing principleSoft
- Exhaust-air functionCannot be throttled
- Manual overrideDetenting
- Type of resetMechanical spring
- Type of pilotingPiloted
- Symbol00991008
- Valve function3/2-way, single solenoid, closed
- Operating pressure0.25 MPa … 1.6 MPa
- Operating pressure2.5 bar … 16 bar
- lapOverlap
- Duty cycle100%
- Characteristic coil data24 V DC: 2.5 W
- Permissible voltage fluctuations+/-10%
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- Note on materialsRoHS compliant
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Type of mountingInline installation With accessories
- Mounting positionAny
- Flow directionNon-reversible
- Product weight500 g
- Pneumatic connection, port 3G1/4
- Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
- Electrical connectionType C Plug To DIN EN 175301-803
- Signal status displayWith accessories
- Material sealsNBR
- Material housingDie-cast aluminium
