FESTO

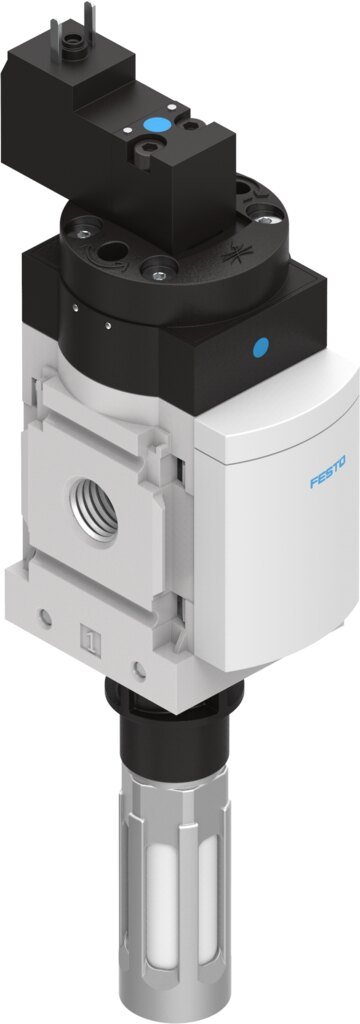

FESTO On/off valve MS4-EE-1/4-10V24-S 542598
$1.00
+ Free Shipping- DesignPiston gate valve
- Type of actuationElectric
- Exhaust-air functionWithout flow control option
- Manual overrideNon-detenting
- Type of resetMechanical spring
- Type of pilotingPilot actuated
- Symbol00991008
- Valve function3/2-way, closed, monostable
- Operating pressure4 bar … 10 bar
- lapOverlap
- C value9.5 l/sbar
- b value0.44
- Standard nominal flow rate (standardised to DIN 1343)2000 l/min
- Duty cycle100%
- Characteristic coil data24 V DC: 1.8 W
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- Note on materialsRoHS-compliant
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C … 50 °C
- Degree of protectionIP65
- Ambient temperature-10 °C … 50 °C
- Suitable for use with foodSee supplementary material information
- Type of mountingEither: In-line installation With accessories
- Mounting positionoptional
- Flow directionNon-reversible
- Product weight289 g
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Pneumatic connection, port 3G1/4
- Pilot air supplyInternal
- Electrical connectionType C Plugs To DIN EN 175301-803 Square design
- Material sealsNBR
- Material housingDie-cast aluminium
