FESTO

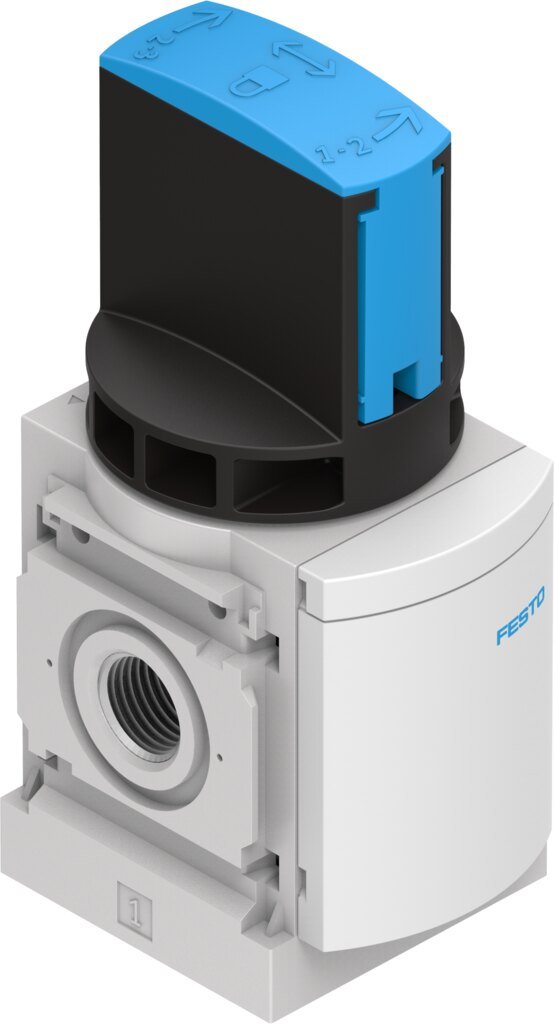

FESTO On/off valve MS6-EM1-1/2 541267
$1.00
+ Free Shipping- DesignRotary switching valve
- Type of actuationManual
- Exhaust-air functionCannot be throttled
- Type of pilotingDirect
- Symbol00991670
- Valve function3/2-way, double solenoid
- Operating pressure0 bar … 18 bar
- C value30.8 l/sbar
- b value0.57
- Standard nominal flow rate (standardised to DIN 1343)8700 l/min
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gas
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 – Moderate corrosion stress
- Note on materialsRoHS compliant
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Suitable for use with foodSee supplementary material information
- Type of mountingEither: Inline installation With accessories
- Mounting positionAny
- Flow directionNon-reversible
- Product weight580 g
- Pneumatic connection, port 1G1/2
- Pneumatic connection, port 2G1/2
- Pneumatic connection, port 3G1/2
- Material sealsTPE-U(PU)
- Material housingDie-cast aluminium
