FESTO

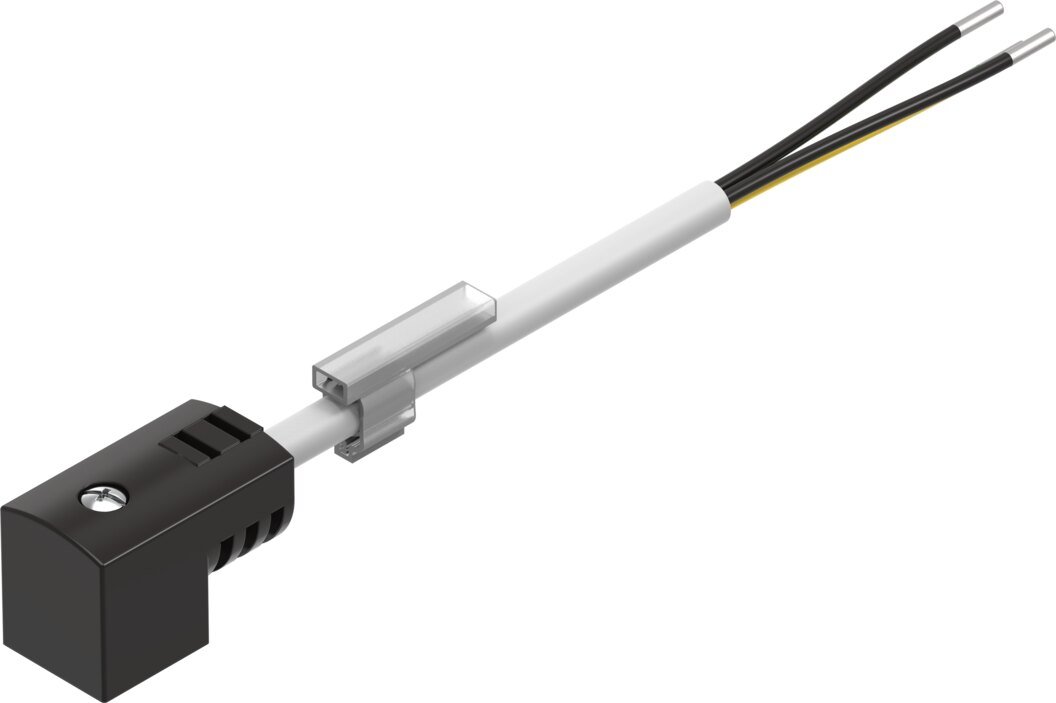

FESTO Plug socket with cable KMEB-1-24-2.5-LED 151688
$1.00
+ Free Shipping- Signal status displayYellow LED
- Mounting positionAny
- Product weight125 g
- Electrical connection 1Socket, to EN 175301-803, type C
- Electrical connection 1, designSquare
- Electrical connection 1, connection typeSocket
- Electrical connection 1, cable outletAngled
- Electrical connection 1, note on cable outlet90°
- Electrical connection 1, number of connections/cores3
- Electrical connection 1, type of mountingOn solenoid valve via M2.5 central screw
- Electrical connection 2, connector systemOpen end
- Electrical connection 2, number of connections/cores3
- Nominal operating voltage DC24 V
- Immunity to surge0.8 kV
- Protective conductor connectionAvailable
- Cable length2.5 m
- Cable characteristicStandard
- Cable diameter5.2 mm
- Cable structure3 x 0.5 mm²
- Wire endsWire ferrule
- Degree of protectionIP65 To IEC 60529
- Ambient temperature-20 °C … 80 °C
- CE mark (see declaration of conformity)In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)To UK RoHS instructions
- LABS (PWIS) conformityVDMA24364-B2-L
- Pollution degree3
- Corrosion resistance class CRC1 – Low corrosion stress
- Material cable sheathPVC
- Material housingPA66-GF30
- Material sealsNBR
- Material electrical contactSilver-plated copper alloy
