FESTO

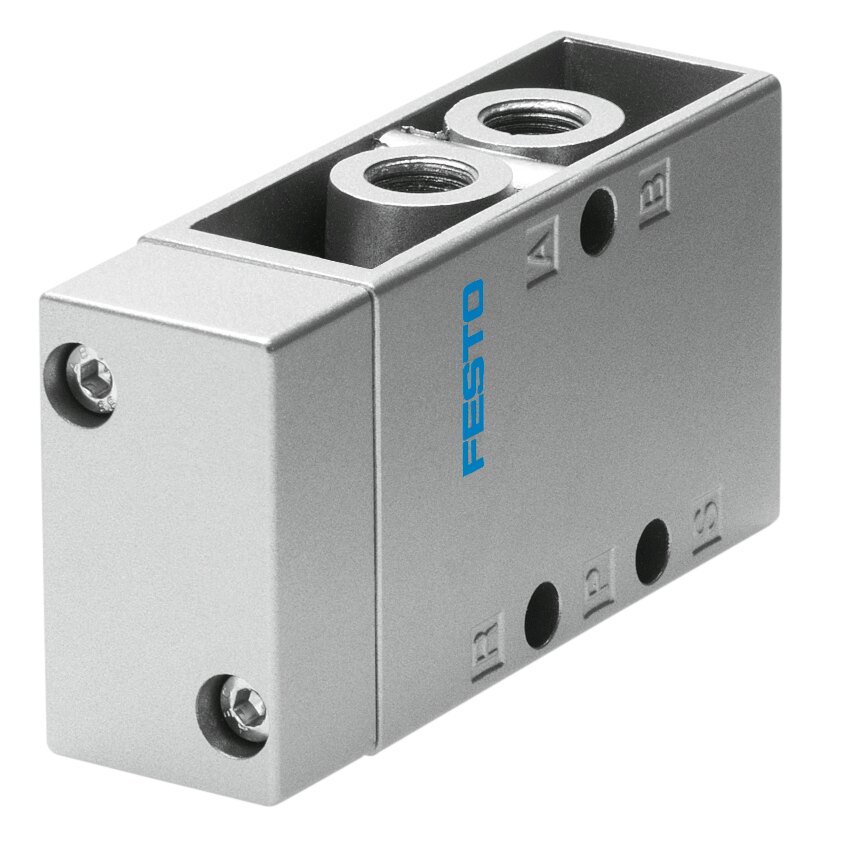

FESTO Pneumatic valve VL-5-1/4 9199
$1.00
+ Free Shipping- Valve function5/2-way, monostable
- Type of actuationPneumatic
- Construction width30.5 mm
- Standard nominal flow rate (standardised to DIN 1343)800 l/min
- pneumatic working portG1/4
- Operating pressure0 MPa … 0.8 MPa
- Operating pressure0 bar … 8 bar
- DesignPoppet seat
- Type of resetMechanical spring
- Degree of protectionIP65
- Nominal size7 mm
- Grid dimension32 mm
- Exhaust-air functionWith flow control option
- Sealing principleSoft
- Mounting positionoptional
- Type of pilotingDirect
- Pilot air supplyExternal
- Flow directionNon-reversible
- Symbol00991001
- lapUnderlap
- Pilot pressure0.12 MPa … 1 MPa
- Pilot pressure1.2 bar … 10 bar
- Switching time off11 ms
- Switching time on7 ms
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC1 – Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature-20 °C … 60 °C
- Media temperature-10 °C … 60 °C
- Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature-10 °C … 60 °C
- Product weight220 g
- Type of mountingOn manifold rail With through-hole
- Pilot air port 14G1/8
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Pneumatic connection, port 3G1/4
- Pneumatic connection, port 4G1/4
- Pneumatic connection, port 5G1/4
- Note on materialsRoHS-compliant
- Material sealsNBR TPE-U(PU)
- Material housingDie-cast aluminium
