FESTO

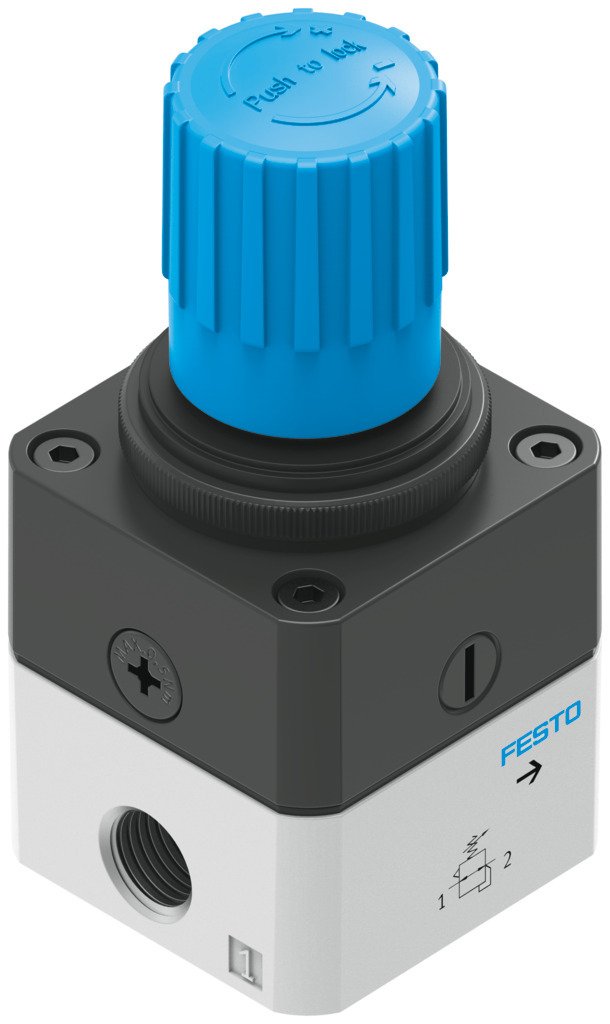

FESTO Precision pressure regulator LRP-1/4-2,5 162834
$1.00
+ Free Shipping- Actuator lockRotary knob with detent
- Mounting positionoptional
- DesignPiloted precision diaphragm control valve
- Controller functionOutput pressure constant With secondary venting
- Symbol00991540
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8
- Operating pressure0.1 MPa … 1.2 MPa
- Operating pressure1 bar … 12 bar
- Pressure regulation range0.05 bar … 2.5 bar
- Inlet pressure 11 bar … 12 bar
- Max. pressure hysteresis0.02 bar
- Standard nominal flow rate (standardised to DIN 1343)1800 l/min
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
- Note on operating and pilot mediumLubricated operation not possible
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Media temperature-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight310 g
- Type of mountingWith accessories
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Note on materialsRoHS-compliant
- Material sealsNBR
- Material housingAluminium
