FESTO

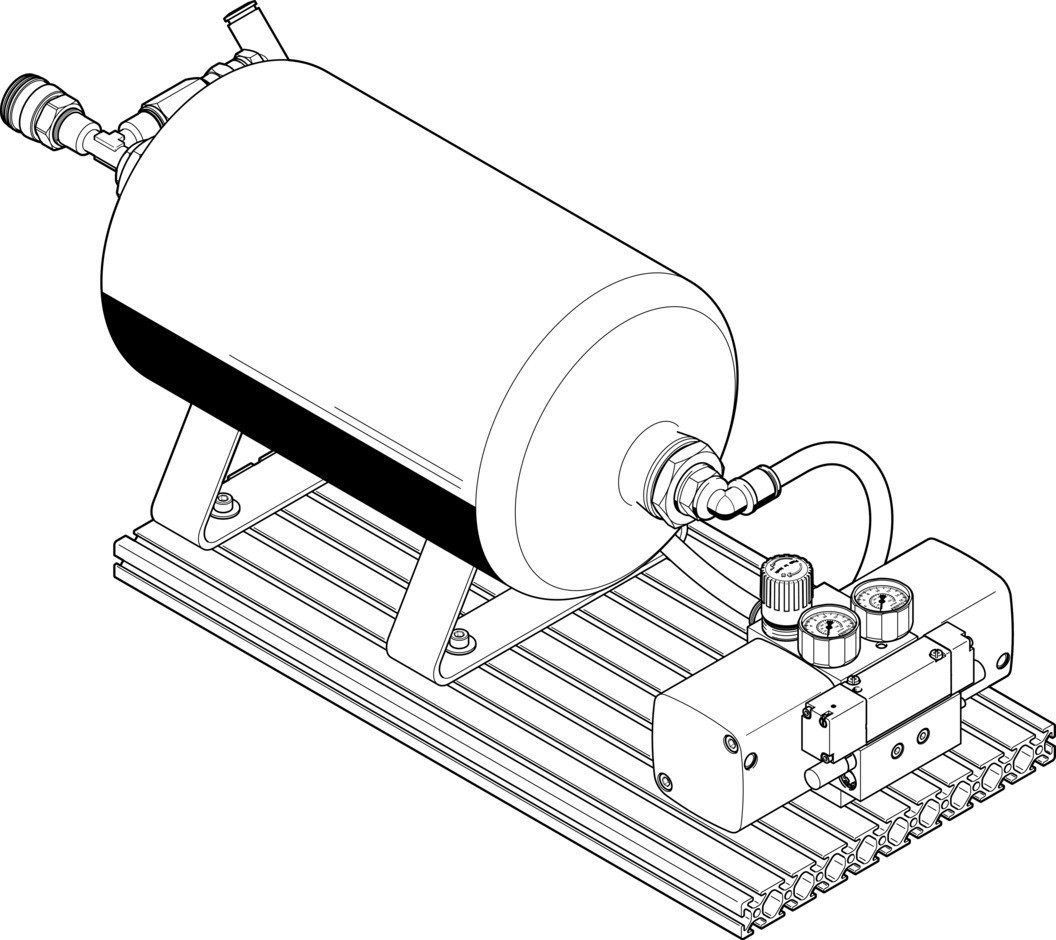

FESTO Pressure booster DPA-40-10-CRVZS5 552930
$721.00
+ Free Shipping- Piston diameter40 mm
- Volume5 l
- Mounting positionCondensate drain underneath
- DesignWith air reservoir Via pressure gauge With check valve
- Symbol00991432
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
- Output pressure 20.45 MPa … 1 MPa
- Output pressure 24.5 bar … 10 bar
- Output pressure 265.25 psi … 145 psi
- Operating pressure0.25 MPa … 0.8 MPa
- Operating pressure2.5 bar … 8 bar
- Operating pressure36.25 psi … 116 psi
- Pressure regulation range0.45 MPa … 1 MPa
- Pressure regulation range4.5 bar … 10 bar
- Pressure regulation range65.25 psi … 145 psi
- Inlet pressure 12 bar … 8 bar
- Inlet pressure 10.2 MPa … 0.8 MPa
- Inlet pressure 129 psi … 116 psi
- CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
- UKCA marking (see declaration of conformity)to UK Pressure Equipment Regulations
- Operating mediumCompressed air to ISO 8573-1:2010 [7:3:4]
- Note on operating and pilot mediumLubricated operation not possible
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Storage temperature5 °C … 60 °C
- Ambient temperature5 °C … 60 °C
- Max. tightening torque for condensate drain27 Nm
- Product weight7300 g
- Type of mountingVia slot nuts
- Pneumatic connection, port 1QS-10
- Pneumatic connection, port 2KD4
- Pneumatic connection, port 3Silencer
- Note on materialsRoHS-compliant
- Material air reservoirHigh-alloy stainless steel
