FESTO

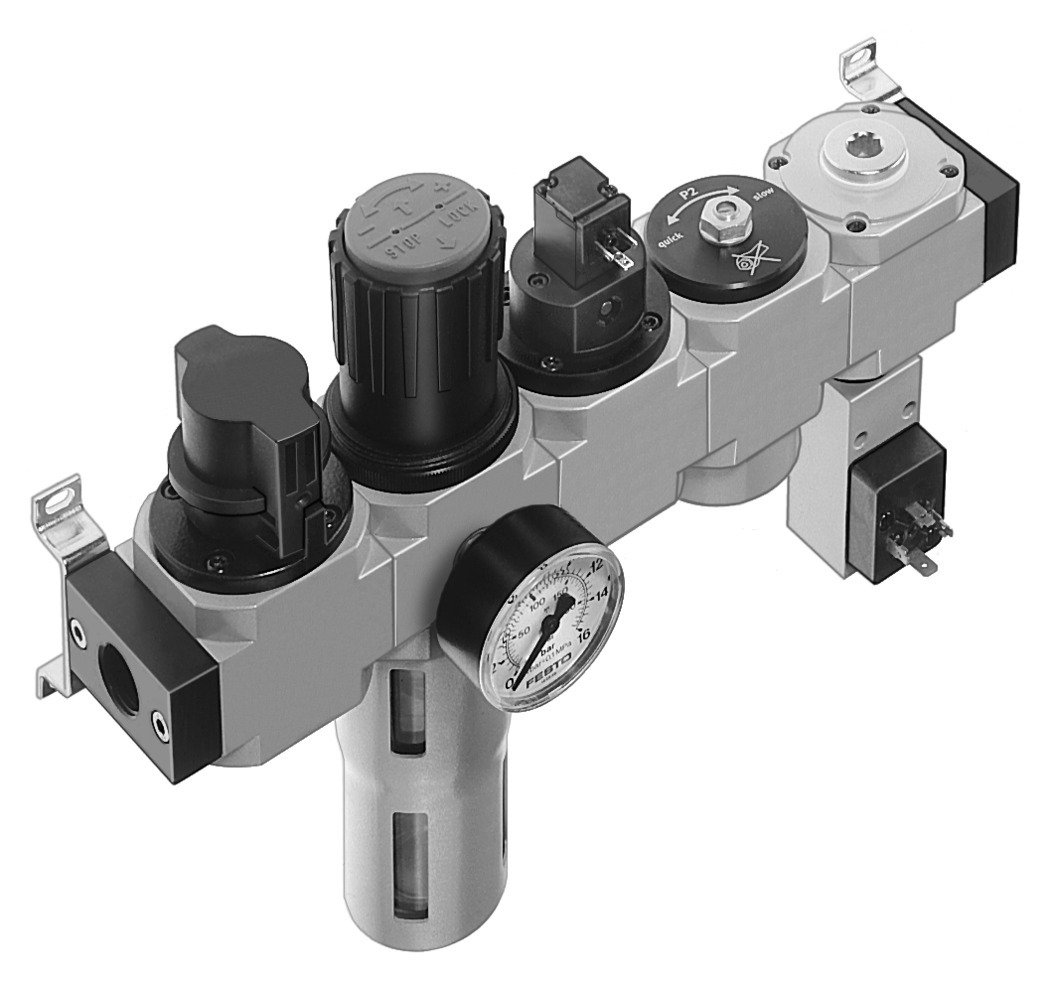

FESTO Service unit combination LFR-1/4-D-MINI-KC 185733
$70.00
+ Free Shipping- SizeMini
- SeriesD
- Actuator lockRotary knob with detent
- Mounting positionVertical +/-5°
- Grade of filtration40 µm
- Condensate drainManually rotating
- DesignOn/off valve Filter regulator with pressure gauge
- Max. condensate volume22 ml
- Bowl guardMetal bowl guard
- Symbol00991523
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
- Operating pressure0.1 MPa … 1.6 MPa
- Operating pressure1 bar … 16 bar
- Operating pressure14.5 psi … 232 psi
- Pressure regulation range0.05 MPa … 1.2 MPa
- Pressure regulation range0.5 bar … 12 bar
- Pressure regulation range7.25 psi … 174 psi
- Max. pressure hysteresis0.02 MPa
- Max. pressure hysteresis0.2 bar
- Max. pressure hysteresis2.9 psi
- Standard nominal flow rate (standardised to DIN 1343)1150 l/min
- Operating mediumInert gases
- Corrosion resistance class CRC2 – Moderate corrosion stress
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:4] Inert gases
- Media temperature-10 °C … 60 °C
- Ambient temperature-10 °C … 60 °C
- Product weight700 g
- Type of mountingWith accessories
- Pneumatic connection, port 1G1/4
- Pneumatic connection, port 2G1/4
- Material housingDie-cast zinc
- Material bowlPC
