FESTO

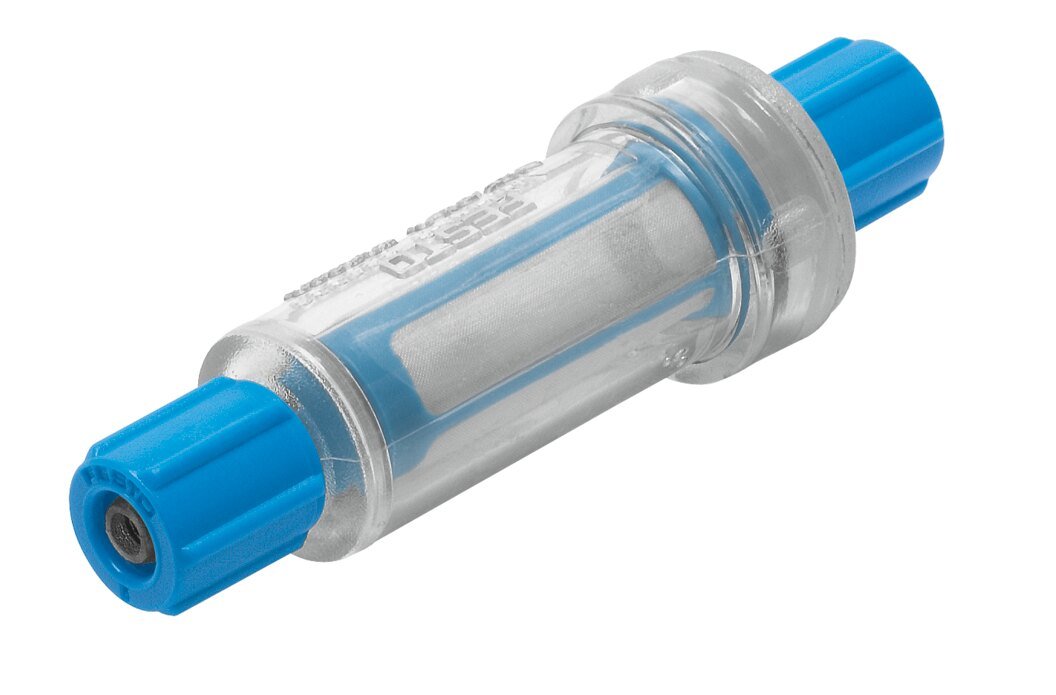

FESTO Vacuum filter VAF-PK-6 160239
$1.00
+ Free Shipping- Nominal size4.6 mm
- Mounting positionAny
- Grade of filtration50 µm
- Symbol00991483
- Operating pressure-0.95 bar … 0 bar
- Note on operating pressureOnly for use in open vacuum systems
- Flow rate with vacuum = -0.075 MPa (-0.75 bar, -10.875 psi)210 l/min
- Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature0 °C … 40 °C
- Product weight10 g
- Type of mountingInline installation
- Pneumatic connectionPK-6 with union nut
- Material union nutPOM
- Note on materialsRoHS compliant
- Material filterFabric PA
- Material housingPA
- Suitable for ejector pulse≤8 bar
