FESTO

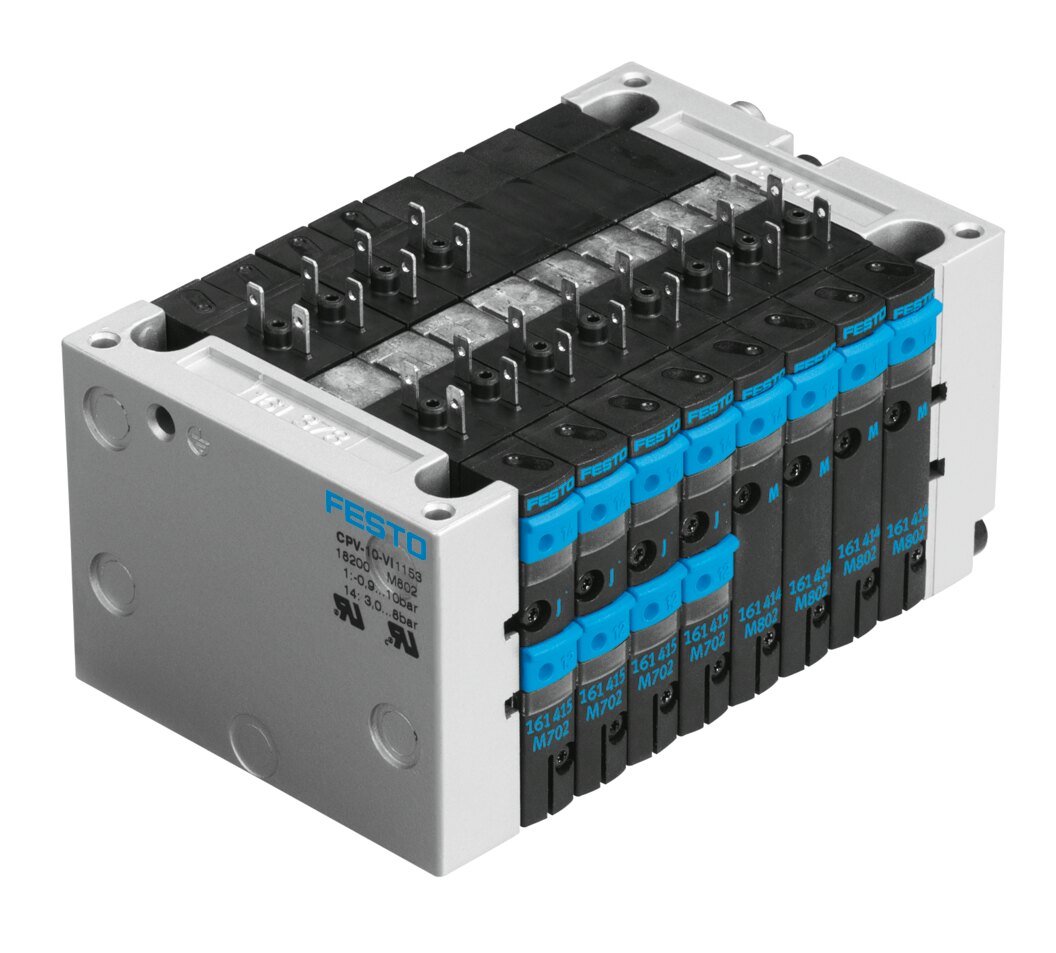

FESTO Valve terminal CPV14-VI 10P-14-8C-FB-R-Y-8J+P 18210
$1.00
+ Free Shipping- Electrical controlAS-i CPI installation system Individual connection Fieldbus Multi-pin
- Electrical I/O systemYes
- Terminal type10
- Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
- Media temperature-5 °C … 50 °C
- Ambient temperature-5 °C … 50 °C
- Storage temperature-20 °C … 40 °C
- Degree of protectionIP65
- Corrosion resistance class CRC1 – Low corrosion stress 2 – Moderate corrosion stress
- Operating pressure-0.09 MPa … 1 MPa
- Operating pressure-0.9 bar … 10 bar
- Note on operating pressure0 – 0.8 MPa with ext. pilot air 0 – 8 bar with external pilot air
- Pilot pressure0.3 MPa … 8 MPa
- Pilot pressure3 bar … 80 bar
- LABS (PWIS) conformityVDMA24364-B1/B2-L
- CE mark (see declaration of conformity)To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)To UK RoHS instructions
- KC markKC-EMV
- ApprovalRCM c UL us – Recognised (Oil)
- Explosion protectionClass I, Div. 2 (US) Zone 2 (ATEX) Zone 2 (UKEX)
- ATEX category gasII 3G
- Explosion protection certification outside the EUEPL Gc (GB) NEC 500 Class I, Div. 2
- Explosion ignition protection type for gasEx ec IIC T4 Gc X
- Explosion ambient temperature-5°C <= Ta <= +50°C
- Note on materialsRoHS compliant
- Valve terminal structureFixed grid
- Max. number of valve positions8
- Max. number of valve functions16
- Max. number of pressure zones2
- Type of actuationElectrical
- Valve functionVacuum generator Vacuum generator + 2/2-way, closed, monostable
- DesignPiston gate valve
- Sealing principleSoft
- Valve size14 mm
- Pilot air supplyExternal Internal
- Max. standard nominal flow rate800 l/min at 14 mm
- Nominal size6 mm
- Suitability for vacuumYes
- pneumatic working portG1/8 QS-6 QS-8 QS-1/8 QS-1/4
- Pneumatic connection, port 1Common line
- Pneumatic connection, port 2G1/8
- Pneumatic connection, port 3Common line
- Pneumatic connection, port 4G1/8
- Pilot air port 12/14Common line
- Pilot exhaust port 82/84Common line
- Signal status displayLED
- Nominal operating voltage DC24 V
