FESTO

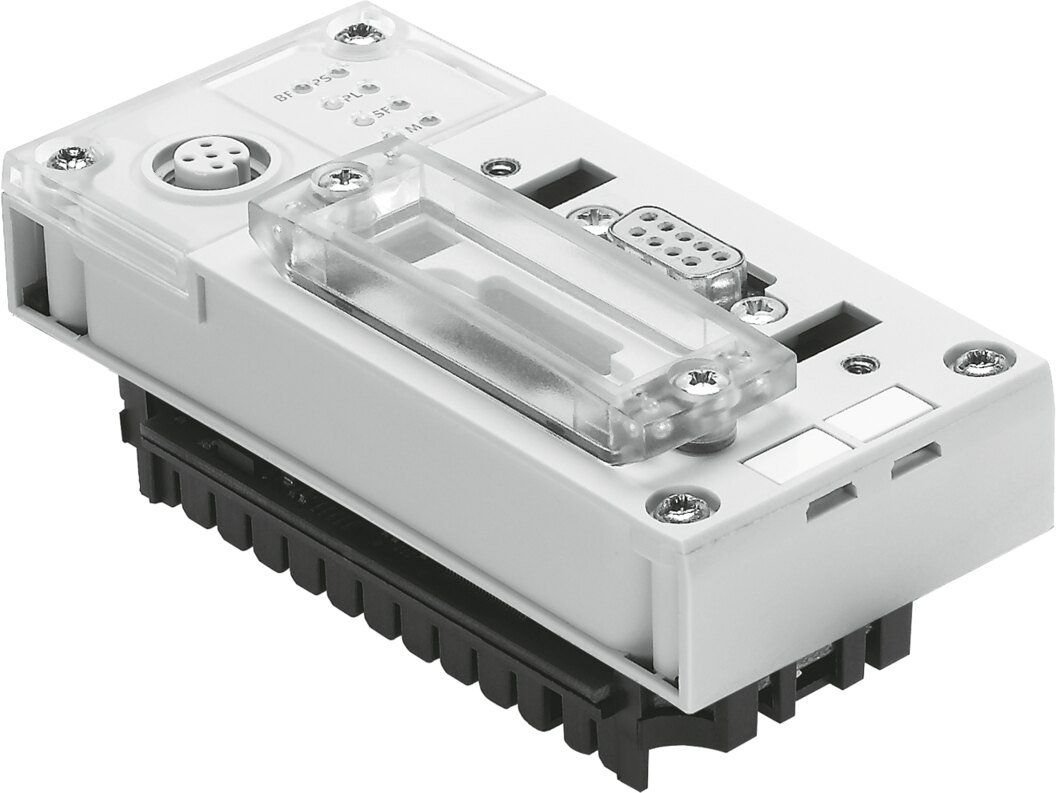

New Oriqinal Festos CPX-FB13 Bus Node 195740 Fast Shipping
$1.00
+ Free Shipping- ProtocolPROFIBUS DP
- Dimensions (W x L x H)50 mm x 107 mm x 50 mm
- Product weight115 g
- Ambient temperature-5 °C … 50 °C
- Storage temperature-20 °C … 70 °C
- Degree of protectionIP65 IP67
- Corrosion resistance class CRC1 – Low corrosion stress
- LABS (PWIS) conformityVDMA24364-B2-L
- Material housingMakrolon®
- LED display, product-specificM: Modify, parameterisation PL: Load supply PS: Electronics supply, sensor supply SF: System errors
- LED display, bus-specificBF: Bus fault
- Device-specific diagnosticsChannel-oriented and module-oriented diagnostics Undervoltage of modules Diagnostics memory
- Operator controlsDIL switch
- Field bus interface2x M12x1, 5-pin, B-coded Sub-D socket, 9-pin Sub-D plug connector, for self-assembly
- Max. address volume, inputs64 Byte
- Max. address volume, outputs64 Byte
- ParameterisationDiagnostic behaviour Fail-safe response Forcing of channels Signal setup System parameters
- Baud rate96 … 12000 kbit/s
- Configuration supportGSD file
- Additional functionsChannel-oriented diagnostics via fieldbus Start-up parameterisation in plain text via fieldbus System status can be mapped using process data Additional diagnostic interface for operator units
- Operational voltage range DC18 V … 30 V
- Nominal operating voltage DC24 V
- Intern power consumption nominal operating voltageTyp. 200 mA
- Types of communicationDPV0: Cyclic communication DPV1: Acyclic communication
