Overview
Have you ever encountered a situation where a light curtain needs to be moved along with something else? In such cases, not only do you need to prevent personnel from entering, but also the light curtain must not cause the safety circuit to be interrupted when it moveshttps://heiautomation.com/ relatively. Generally, the dynamic protection area function is used for this purpose.

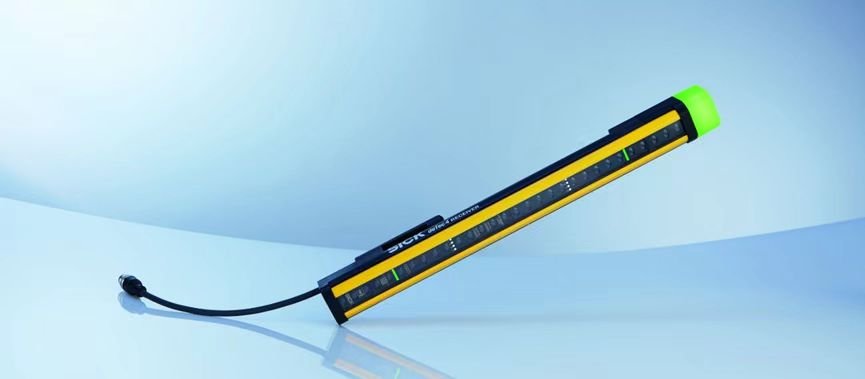

The deTec4 safety curtain photoelectric sensor from SICKhttps://www.facebook.com/profile.php?id=100087291657130 is designed to be a versatile tool, helping you effortlessly and quickly apply the flexible use of safety curtains!!
Why is this function necessary?
The SICKhttps://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6j safety photoelectric curtain, as an industry standard, always adheres to the requirements of safety regulations. According to the EN/IEC 61496 standard, the light divergence angle of the safety photoelectric curtain must be less than 5°. Such high-precision performance ensures that during the installation stage, for the successful alignment of the transmitting end and the receiving end with the light, there are certain precision requirements for the installation reference plane. When facing scenarios where the photoelectric curtain needs to be coordinated with movement, the installation reference plane is affected by the precision of mechanical components such as guide rails, and during movement, inevitable deviations in the alignment with the light occur. When the deviation reaches a certain level, the two channels of OSSD of the safety photoelectric curtain will enter the OFF state, ultimately causing the equipment to unexpectedly stop.
SICK Value
For this application scenario, SICKhttps://heiautomation.com/ employs specific algorithms to
flexibly set the light threshold of the safety light curtain. This enables the safety light curtain to remain stable in its light reception even when in a state of relative motion.

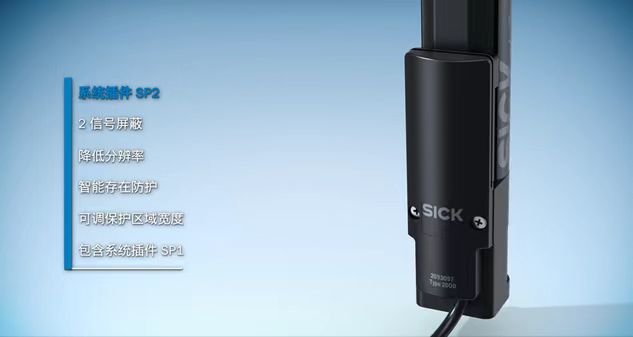

Configurationhttps://heiautomation.com/contact-us/ Introduction：The deTec4 is connected to the dedicated accessory system plug (SP series)
and then through the push-button switch a (DIP column), Switch) Just enable this function.

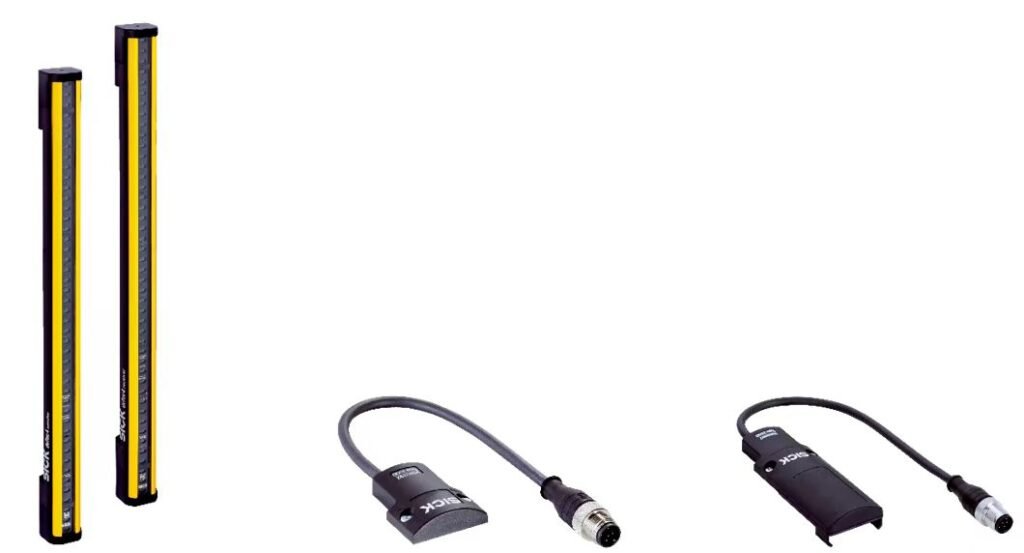

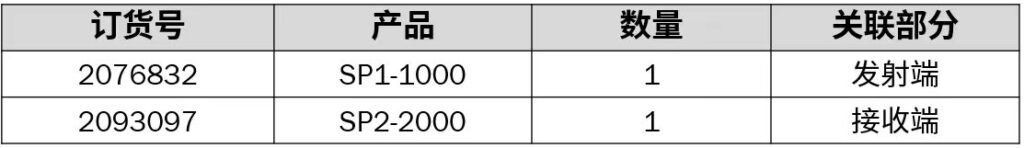

The basic accessory https://heiautomation.com/about/configuration is as follows (If you need additional functions, please feel free to contact SICK China for further information)

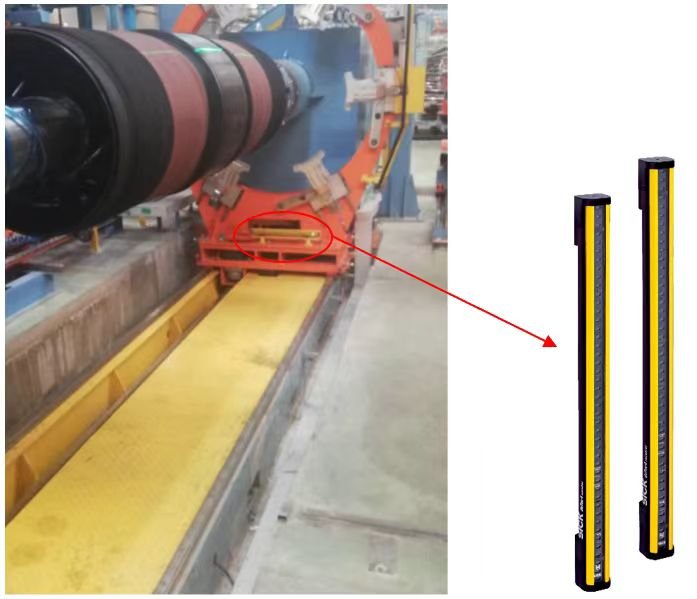

Case Study One: Tire Molding Machine
Case https://heiautomation.com/contact-us/Study Two: RGV Warehouse Loading and Unloading Mobile Unit
The advantages of the deTec4 series
- Abundant selection of protection areashttps://www.instagram.com/sunny.zeng5/

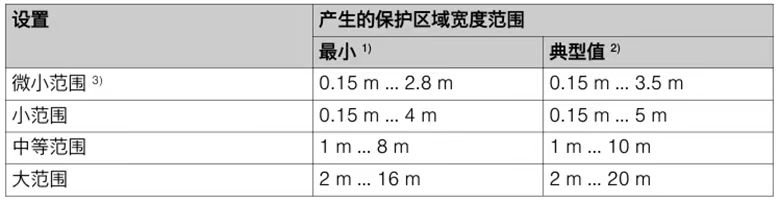

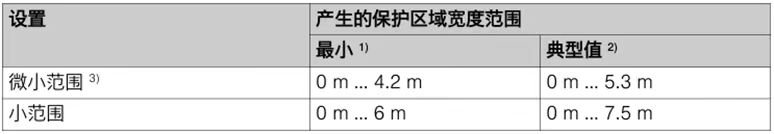

The protection areas of the deTec4 series offer four types for your choice, namely, small range / small area / medium range / large range. Depending on different resolutions (14mm / 30mm), the specific distances of the four types of protection areas also vary. The details are as follows:

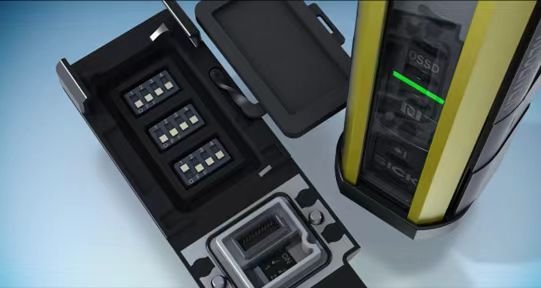

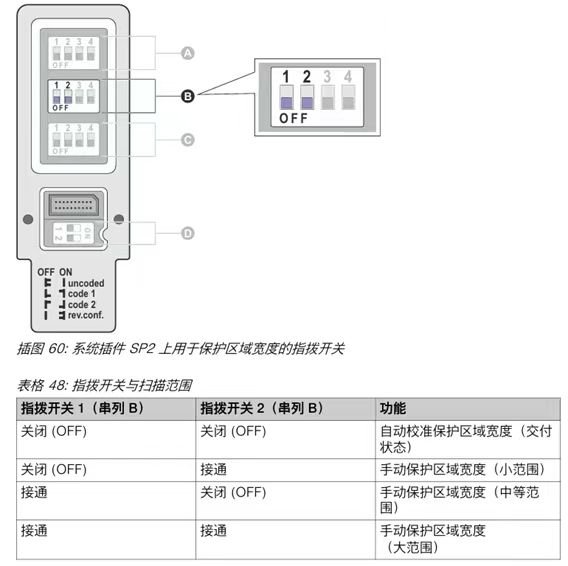

- Plug-and-play DIP configuration schemehttps://www.facebook.com/profile.php?id=100087291657130
The DIP switch is a type of toggle switch used for setting and controlling. It is widely employed in electronic devices and operates based on binary coding principles.
Follow the instructions below to adjust the diphttps://heiautomation.com/product/ switches, and you will be able to achieve…

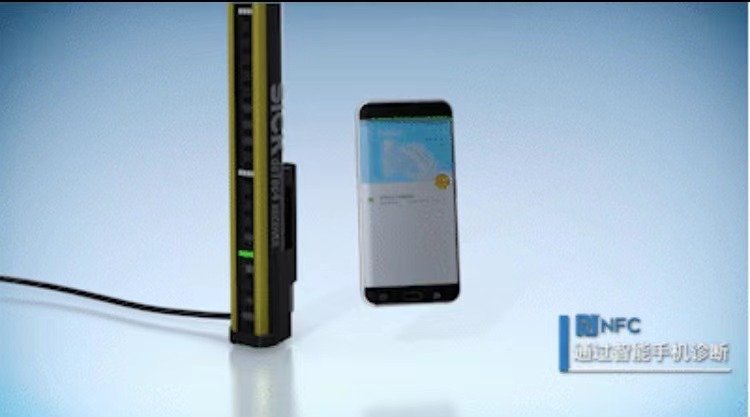

In addition, deTec4 is equipped with NFC communication. By combining with the free software “SlCKhttps://heiautomation.com/about/ SafetyAssistant App” available on the SICK website, you can obtain real-time information about the device, including but not limited to: fault history records, real-time voltage, device model, configuration details, etc. This saves you the trouble of reading the operation manual!!!
The above is the complete introduction to the dynamic protection area function of SICKhttps://heiautomation.com/festo-cylinders-versatile-applications-across-various-industries/ safety product – deTec4. We hope that in the future, when there are scenarios involving the relative movement of light curtains, everyone can apply this product!
