SCHMERSALhttps://heiautomation.com/product/ ‘S AZM150 Electromagnetic Safety Lock
The Schmersal https://heiautomation.com/Compact Electromagnetic Security Lock AZM150, with the addition of new accessories, now offers a wider range of applications.
At the same time, as a complete system, it is also a very cost-effective security solution.

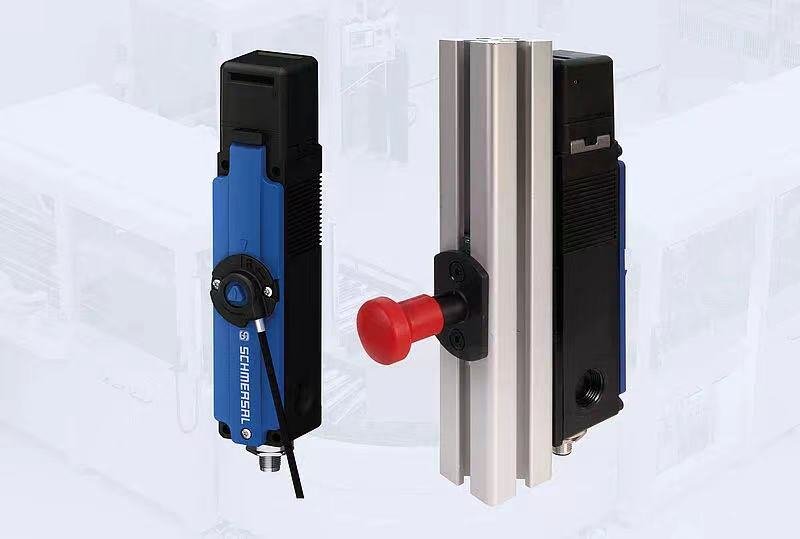

New accessory – rear-mounted button
It can be used for emergency escape or emergency unlocking.
Emergency Escape: If the protective door accidentally closes, it can
be unlocked from the insidehttps://heiautomation.com/contact-us/ to leave the dangerous area.
Emergency Unlocking: It can be unlocked from the outside to open the protective door.
This button has two different versions available:
45mm version: Suitable for situations where the door post thickness is 40 mm
(For example), it can be installed using the MP-AZM150-1 mounting plate.
·170mm version: Suitable for situations where the maximum thickness of the door post is
170 mm.
New accessory – Bowden line unlocking device
The Bowden cable release with a total length of 6 meters. It can achieve remote unlocking when it is impossible to reach the installation position of the electromagnetic lock. This provides a safety guarantee in special dangerous situations.
If the operator accidentally gets trapped inside the system, the Bowden cable can be used for emergency unlocking.
When working outside the dangerous area, the Bowden https://www.youtube.com/@%E6%9B%BE%E6%85%A7%E5%A9%B7-z6jcable can be used as an emergency unlocking device.

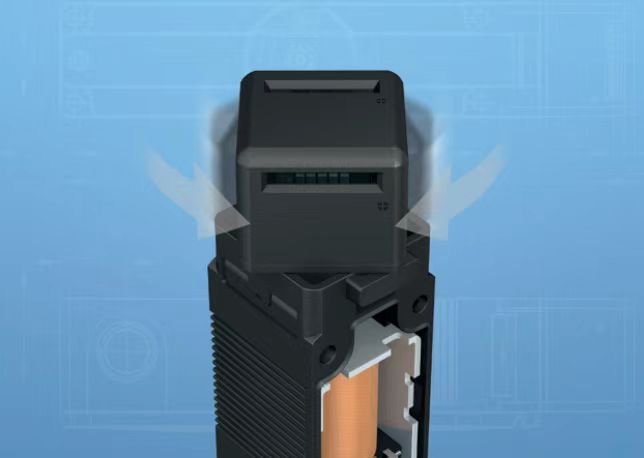

Rotating the operating head enhances versatility
One advantage of the AZM150 electromagnetic safety lock is its rotatable operating head. It can be locked simply by covering the cover, without the need for screw connections.
This 360-degree rotating operating head with two operating piece entrances can support different installation positions and approach options.

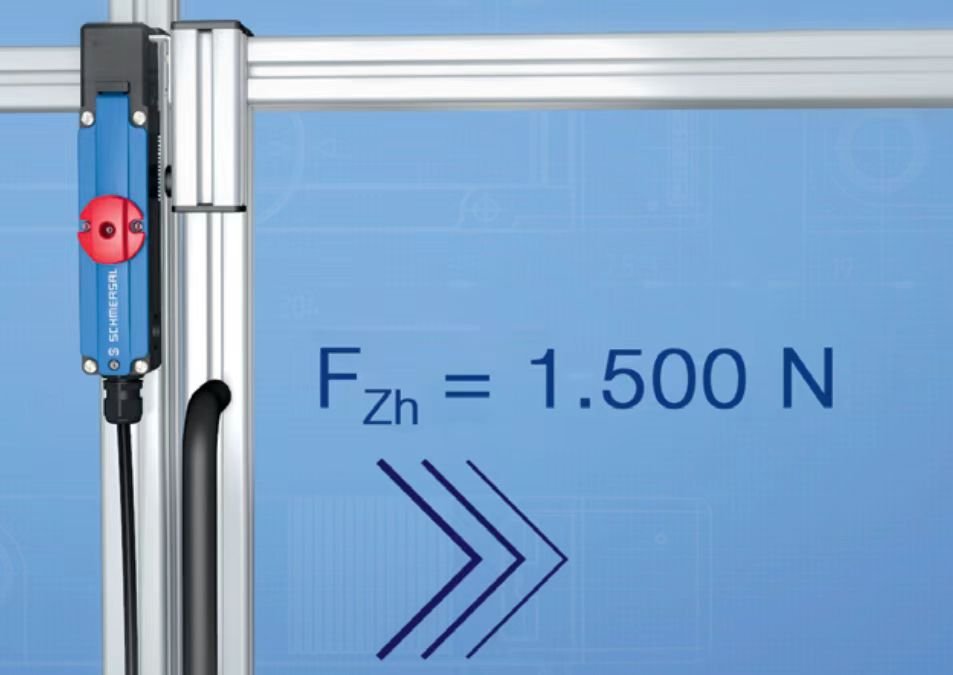

This feature also significantly enhances the flexibility of the AZM150https://www.facebook.com/profile.php?id=100087291657130, with a holding force of up to 1,500 N for this device.

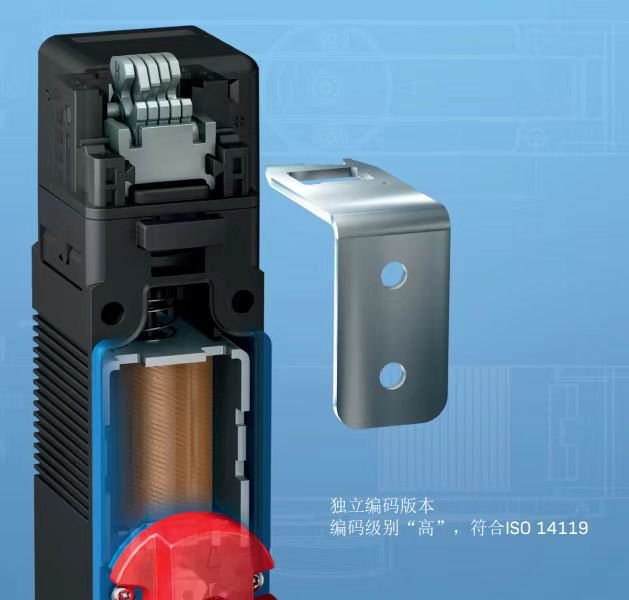

An electromechanical switch with a high coding level
AZM150 is an electromechanical https://heiautomation.com/contact-us/electromagnetic security lock with a “high” coding level. Therefore, it can provide excellent tamper-proof protection. The advantage for users is that, according to the ISO14119 standard, the high coding level means that no additional tamper-proof measures are required, such as installing them in inaccessible locations or concealed positions.
Economical integrated system suitable for small machines
With these new accessories, this series of products has now become a complete system, covering a wide range of applications up to PLd/Cat 3, and it is also a very cost-effective solution.
Adhering to the principle of “less but better”, the AZM150 https://heiautomation.com/about/series is an ideal choice for small machines and systems or applications with lower costs (requiring only lower performance levels). At the same time, this compact electromechanical electromagnetic safety door lock can precisely meet the required safety levels. 1
